1467244

Overview

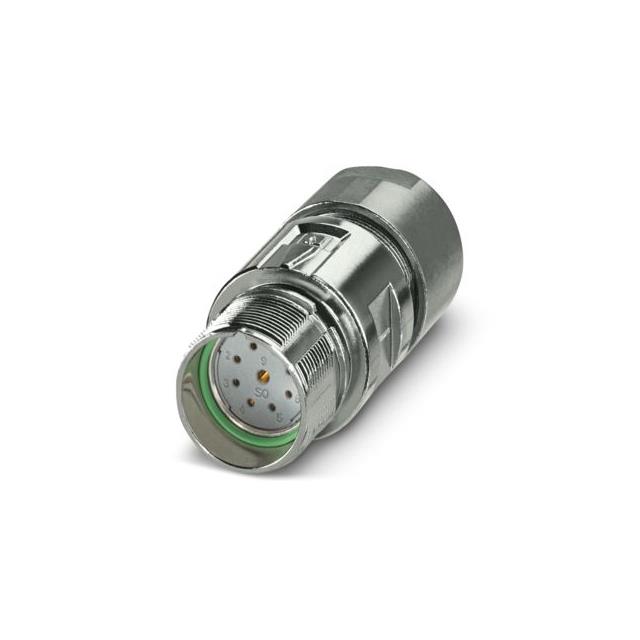

Phoenix Contact part number 1467244, model M23-09S1N129004S, is a shielded coupler connector from the M23 PRO series. It features a straight configuration with 8+1 positions for signal applications. The component supports standard and ONECLICK fast locking systems. Rated voltage is 300 V with a rated surge voltage of 2.5 kV. Rated current is 8 A for maximum connection cross-sections. It operates within a temperature range of -20°C to 70°C and offers IP66 protection.

Feature Summary

• Shielded design for signal integrity in industrial environments
• Compatible with both standard and ONECLICK fast locking mechanisms
• Constructed from polyamide material for durability

Applications

• Industrial signal transmission systems
• M23 PRO series coupling assemblies
• ONECLICK fast locking system integration

Procurement Notes

Verify the specific suffix N129004S against official Phoenix Contact documentation to ensure correct shielding and locking compatibility. Confirm that the 8+1 pin configuration matches your circuit requirements. Check that the operating temperature range of -20°C to 70°C suits your deployment environment. Ensure mating connectors support the same M23 PRO series standards for proper interface alignment.

Selection Notes

Select this component when a shielded M23 coupler is required for signal applications. It is suitable for environments needing IP66 protection and robust polyamide construction. Consider the 8+1 position count and 8 A current rating for load capacity. Verify compatibility with ONECLICK or standard locking systems based on assembly needs.

Part Context

This coupler belongs to the M23 PRO series by Phoenix Contact, designed for industrial automation. It serves as a female connector plug with soldering electrical mounting. The straight orientation and shielded housing distinguish it from unshielded variants. It integrates into modular connection systems requiring reliable signal transmission under mechanical stress.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult Phoenix Contact technical support for equivalent components if direct replacement is necessary.
