1467246

Overview

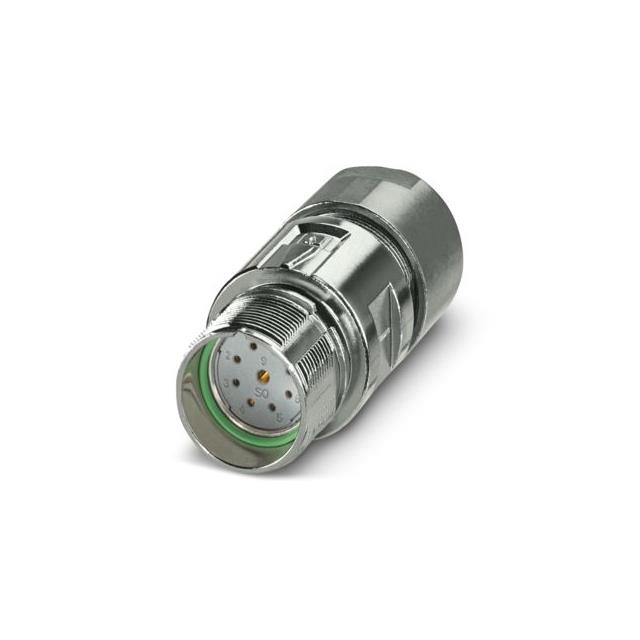

Phoenix Contact part number 1467246 is a M23 PRO series coupler connector, specifically the model M23-09S1N1290DUS. It is a straight plug connector designed for signal applications. The component features 9 positions, configured as 8+1 pins. It utilizes soldering for electrical mounting and includes shielding. The connector supports both standard and ONECLICK fast locking systems.

Feature Summary

• Straight design compatible with standard and ONECLICK fast locking systems
• Shielded construction for signal applications
• Soldering termination method

Applications

• Industrial signal transmission
• M23 PRO series system integration
• Equipment requiring ONECLICK fast locking

Procurement Notes

Verify the exact part number 1467246 against Phoenix Contact official documentation to confirm specifications. Ensure compatibility with M23 PRO series requirements. Check for any specific ordering suffixes that may alter function or availability. Confirm original manufacturer sourcing to guarantee product authenticity and performance integrity.

Selection Notes

Select this component when a straight M23 coupler connector is required for signal applications. Consider the 9-position (8+1) configuration and soldering termination method. Verify compatibility with ONECLICK fast locking systems if rapid connection is needed. Ensure shielding requirements are met for the intended environment.

Part Context

This component belongs to the Phoenix Contact M23 PRO series of circular connectors. The M23 series is widely used in industrial automation for robust signal and power transmission. The PRO series typically offers enhanced durability and standardized interfaces for reliable connectivity in demanding environments.

Replacement Considerations

Cross-reference with Phoenix Contact M23-09S1N1290DUS for identical specifications. Verify pin count, shielding, and locking mechanism compatibility before substitution.
