1467428

Overview

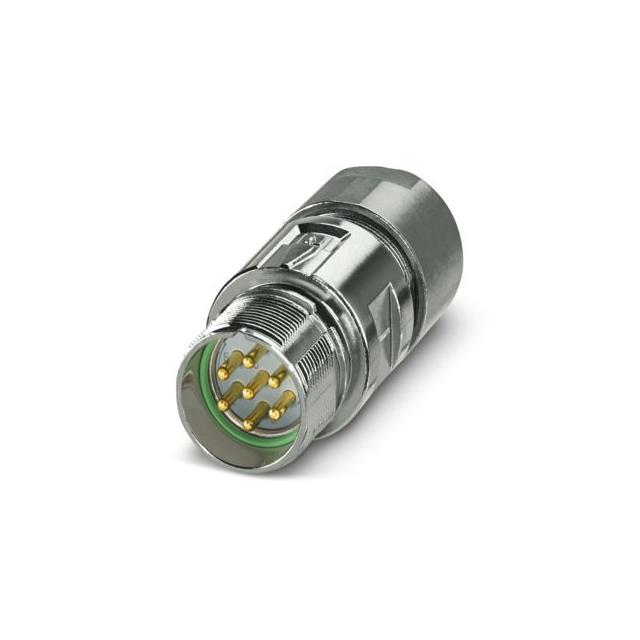

Phoenix Contact part number 1467428, model M23-07P1N129003S, is a shielded coupler connector from the M23 PRO series. It features a straight design with seven positions and standard pin contacts intended for signal applications. The component supports both standard and ONECLICK fast locking systems. Electrical ratings include a nominal voltage of 300 V and a nominal current of 10 A. It utilizes solder termination for contact connection.

Feature Summary

• Shielded construction for signal protection
• Compatible with standard and ONECLICK fast locking mechanisms
• Straight housing geometry

Applications

• Signal transmission in industrial automation
• Connection within M23 PRO series assemblies
• Equipment requiring standard or ONECLICK quick-locking interfaces

Procurement Notes

Verify the complete part number M23-07P1N129003S against Phoenix Contact official documentation to ensure correct configuration. Confirm that the straight, shielded variant with seven positions matches the specific system requirements. Check for UL recognition status if required by local safety regulations. Ensure compatibility with existing M23 mating connectors before procurement.

Selection Notes

Select this component when a shielded, straight coupler connector is required for signal lines. The choice depends on the need for seven positions and compatibility with ONECLICK or standard locking systems. Verify that the 300 V and 10 A ratings meet the circuit demands. Ensure the solder termination method aligns with the assembly process capabilities.

Part Context

This coupler connector belongs to the M23 PRO series, designed for robust industrial environments. The M23 interface provides high density and reliable performance for signal and power applications. The PRO series typically offers enhanced durability and standardized locking options to facilitate rapid installation and maintenance in complex machinery setups.

Replacement Considerations

Direct substitutes must match the M23 form factor, seven-position layout, shielding, and locking mechanism type. Verify electrical ratings and termination style compatibility. Cross-reference Phoenix Contact internal numbering for equivalent configurations within the same product family.
