1467430

Overview

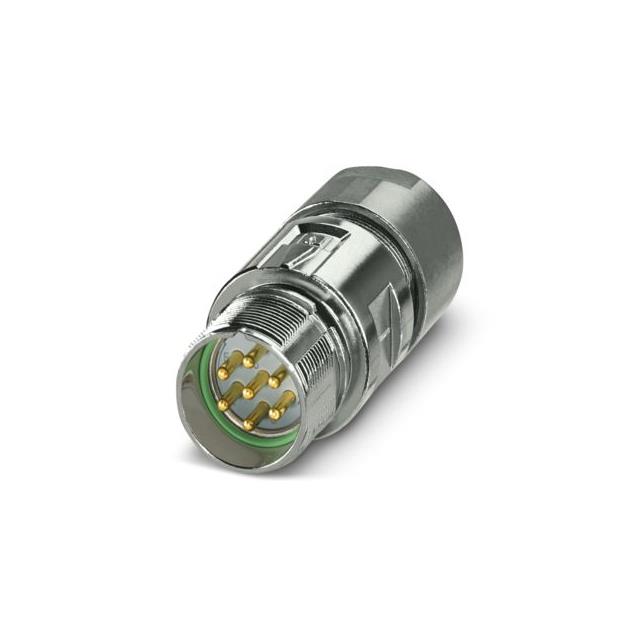

Phoenix Contact part number 1467430 is an M23 PRO series male plug connector designed for signal applications. It features a straight housing configuration with seven positions and includes shielding capabilities. The component supports both standard and ONECLICK fast locking systems, ensuring secure mechanical engagement in industrial environments.

Feature Summary

• Supports standard and ONECLICK fast locking mechanisms
• Provides shielded signal transmission integrity
• Features a straight male plug design

Applications

• Industrial signal connections
• Automation system interconnects
• Control cabinet wiring

Procurement Notes

Verify the specific product datasheet to confirm technical specifications and compliance certifications. Ensure compatibility with mating connectors regarding the ONECLICK locking system and shielding requirements before integration into the final assembly design.

Selection Notes

Select this component for applications requiring robust M23 signal connectivity with integrated shielding. The ONECLICK feature facilitates rapid installation. Confirm that the straight orientation and seven-position count align with the panel layout and cable routing constraints of the target equipment.

Part Context

This connector belongs to the Phoenix Contact M23 PRO series, which focuses on high-performance circular connectors for industrial automation. The series emphasizes durability and ease of use through standardized locking mechanisms, supporting reliable data and signal transmission in demanding operational settings.

Replacement Considerations

Consult the manufacturer's cross-reference tools for verified substitutes. Ensure any alternative maintains the M23 interface, seven-pin configuration, and ONECLICK compatibility to preserve mechanical and electrical performance standards.

FAQ

Does this connector support the ONECLICK fast locking system?

Yes, the 1467430 connector is compatible with both standard and ONECLICK fast locking systems.

Is the connector shielded?

Yes, the component is designed as a shielded connector to ensure signal integrity.
