1467432

Overview

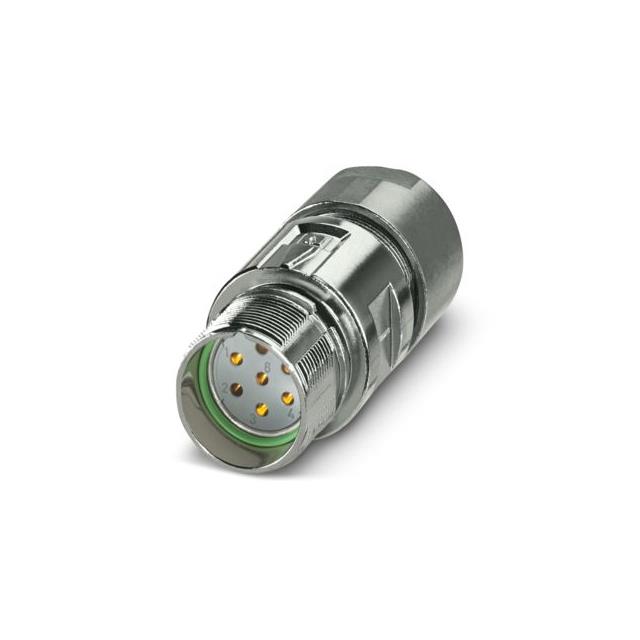

The Phoenix Contact 1467432 is an M23 PRO series coupler connector designed for signal applications. It features a straight, shielded plug configuration with seven positions. The component utilizes a female contact arrangement and employs soldering termination methods. It supports standard and ONECLICK fast locking systems, ensuring secure mechanical engagement in industrial environments.

Feature Summary

• Shielded design provides electromagnetic interference protection
• Compatible with standard and ONECLICK fast locking mechanisms
• Ergonomic construction facilitates efficient installation

Applications

• Industrial signal transmission
• Automated machinery interconnections
• Control cabinet wiring

Procurement Notes

Verify the specific part number 1467432 against official Phoenix Contact documentation to confirm compatibility with existing M23 PRO system components. Ensure that the soldering termination requirements align with your assembly processes. Cross-reference shielding specifications and locking mechanism types to guarantee functional integrity within your designated signal application environment.

Selection Notes

Select this model when a shielded, straight M23 coupler connector is required for signal applications. The seven-position female configuration suits circuits needing multiple signal lines. Consider the ONECLICK locking option if rapid deployment is necessary. Verify that the soldering termination method matches your cable preparation capabilities and environmental constraints.

Part Context

This component belongs to the M23 PRO series, which offers robust circular connectors for demanding industrial settings. The series emphasizes durability and ease of use through innovative cassette systems. The 1467432 variant specifically addresses signal transmission needs with integrated shielding and reliable locking features.

Replacement Considerations

Direct substitutes include other Phoenix Contact M23 PRO series connectors with identical pin counts and shielding. Verify mating interface compatibility before swapping. Generic M23 connectors may lack the specific ONECLICK locking or shielding characteristics.

FAQ

What type of locking system does this connector support?

It supports both standard and ONECLICK fast locking systems.

Is this connector shielded?

Yes, it features a shielded design for added protection.
