1467433

Overview

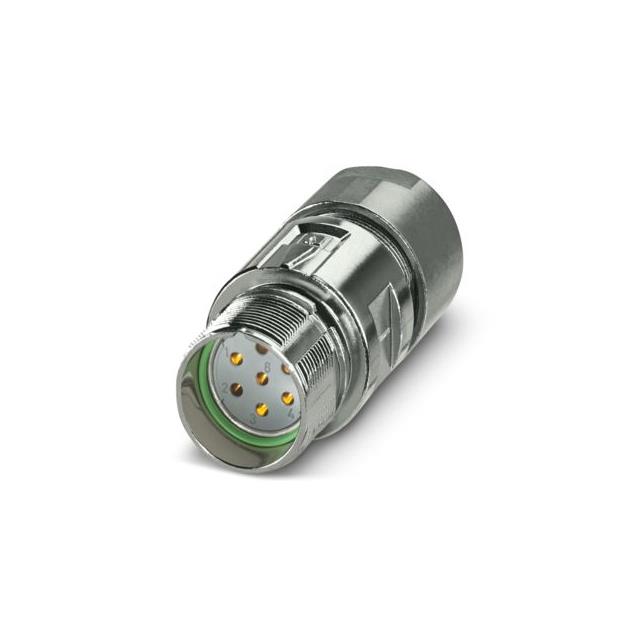

Phoenix Contact part number 1467433, also identified as M23-07S1N129003S, is a shielded coupler connector from the M23 PRO series. It features a straight housing design with seven positions and utilizes solder connections for signal applications. The unit supports standard and ONECLICK fast locking systems with a minimum of 100 insertion/withdrawal cycles.

Feature Summary

• Shielded construction for signal protection
• Compatible with standard and ONECLICK fast locking systems
• Straight housing design with hole-type plug contacts

Applications

• Signal transmission in industrial automation
• Connections using standard locking mechanisms
• Applications utilizing ONECLICK quick-connect systems

Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required cable diameters and locking types. Confirm that the solder connection method aligns with your assembly capabilities. Cross-reference the part number 1467433 with official Phoenix Contact documentation to validate the seven-position configuration and shielding requirements for your specific circuit design.

Selection Notes

Select this component when a shielded, straight M23 coupler is required for signal integrity. Ensure the application supports solder termination rather than crimp or screw options. Verify that the ONECLICK or standard locking mechanism meets the mechanical retention needs of the installation environment.

Part Context

This coupler belongs to the M23 PRO series, designed for robust industrial connectivity. It serves as a mating interface for circular connectors, providing a secure link between cable assemblies and device ports. The seven-position layout accommodates multiple signal lines within a compact M23 form factor.

Replacement Considerations

Direct substitutes must match the M23 size, seven-position count, and solder termination type. Verify equivalent shielding and locking system compatibility before substitution.
