1467435

Overview

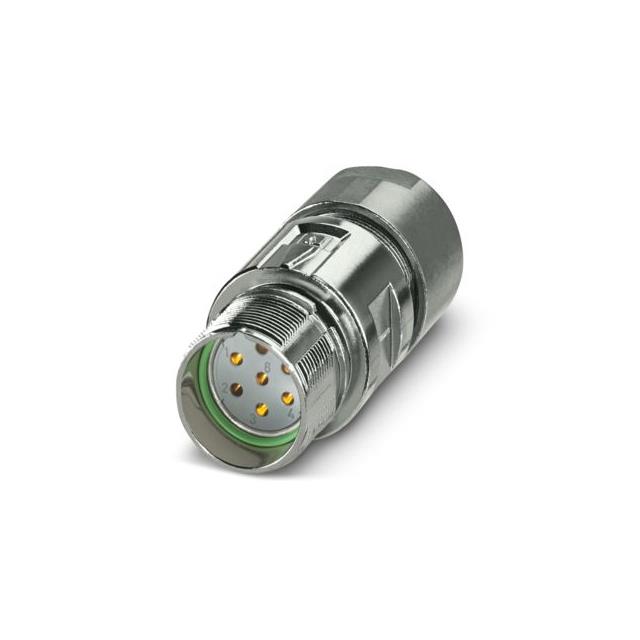

Phoenix Contact part number 1467435 is a M23 PRO series coupler connector featuring seven signal contacts. It utilizes an N-polarization scheme and supports soldering for electrical mounting. The device is rated for a maximum operating temperature of 105°C and carries cUL and UL recognition approvals. Constructed with a gadolinium zinc alloy housing, it provides IP67 ingress protection and includes shielding capabilities.

Feature Summary

• Straight design compatible with standard and ONECLICK fast locking systems
• Shielded construction for electromagnetic interference mitigation
• Robust metal housing material ensuring mechanical durability

Applications

• Industrial automation signal transmission
• Machine tool connectivity
• Control cabinet wiring

Procurement Notes

Verify the specific polarization code and contact configuration against project requirements before procurement. Confirm that the soldering termination method aligns with available assembly equipment. Ensure environmental ratings meet the operational conditions of the intended installation site to guarantee long-term reliability.

Selection Notes

Select this component when a shielded, straight M23 connector with seven positions is required. The N-polarization ensures correct mating orientation. Consider the soldering termination type during PCB or cable preparation. Verify compatibility with the ONECLICK locking system if rapid assembly is necessary for the application.

Part Context

This component belongs to the Phoenix Contact M23 PRO series, designed for robust industrial environments. The series offers various configurations for data, signal, and power connections. Part 1467435 specifically addresses applications requiring high-density signal transmission with secure mechanical locking and environmental sealing.

Replacement Considerations

Cross-reference search tools may identify alternatives from other manufacturers. Verify pin count, polarization, and housing dimensions before substitution. Ensure equivalent shielding and IP ratings are maintained to preserve system integrity and safety compliance.
