Overview

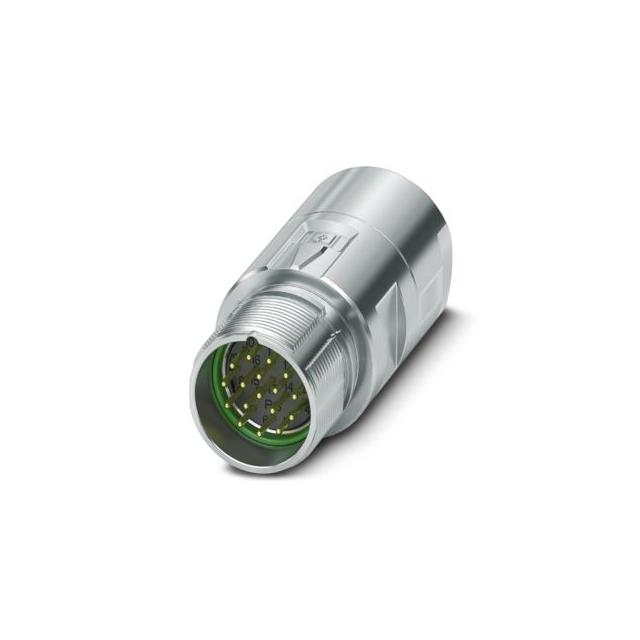

Phoenix Contact part number 1467457, designated as M23-17P1N129003S, is a straight coupler connector from the M23 PRO series. It features 17 positions with male pin contacts and utilizes a solder connection method. The insulating body is constructed from Polybutylene Terephthalate (PBT), while the backshell plating consists of Gadolinium-Zinc. Designed for signal applications, this shielded connector supports both standard locking and ONECLICK fast locking systems. It operates within a temperature range of -40°C to 105°C and withstands 100 insertion/withdrawal cycles.

Feature Summary

• Compatible with ONECLICK fast locking system and standard locking mechanisms
• Shielded design for signal application integrity
• Straight configuration with male pin contact type

Applications

• Signal transmission in industrial automation
• Mating connections within M23 PRO series assemblies
• Equipment requiring ONECLICK quick-lock functionality

Procurement Notes

Verify the specific ordering suffix against official Phoenix Contact documentation to ensure correct contact arrangement and locking mechanism. Confirm that the PBT insulating material and Gadolinium-Zinc plating meet environmental requirements. Cross-reference the 17-position count and solder termination style with schematic diagrams to prevent integration errors during assembly.

Selection Notes

Select this component when a straight, shielded M23 connector with 17 pins is required for signal applications. Ensure compatibility with mating connectors supporting the ONECLICK system if rapid deployment is necessary. Verify that the operating temperature range of -40°C to 105°C aligns with the installation environment's thermal conditions.

Part Context

This part belongs to the M23 PRO series, which provides robust circular connectivity solutions. The M23 form factor supports high-density configurations, making it suitable for complex industrial control systems. The ONECLICK feature distinguishes it by offering faster engagement compared to traditional screw-lock variants, enhancing maintenance efficiency.

Replacement Considerations

Direct substitutes must match the 17-pin count, straight orientation, and ONECLICK locking capability. Verify identical shielding and solder termination specifications. Consult Phoenix Contact cross-reference guides for exact equivalents rather than assuming generic M23 compatibility.

FAQ

What locking system does the 1467457 connector support?

It supports both the standard locking system and the ONECLICK fast locking system.

Is the 1467457 connector shielded?

Yes, the connector features a shielded design intended for signal applications.
