1467458

Overview

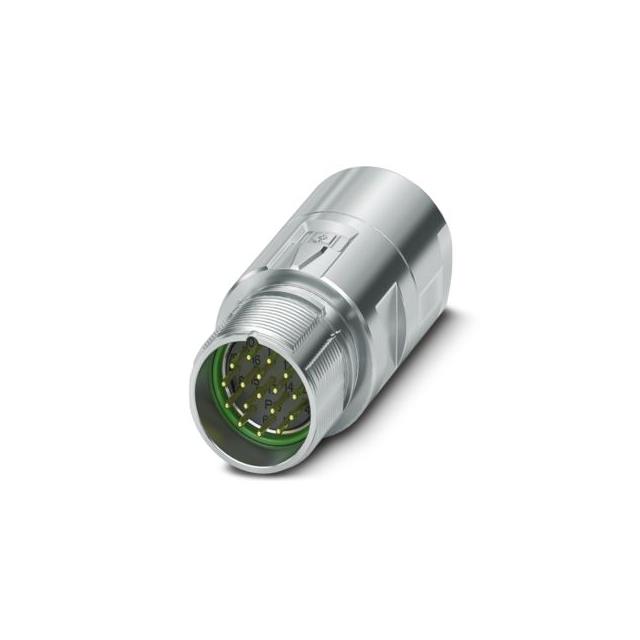

Phoenix Contact part number 1467458, also identified as M23-17P1N129004S, is a circular coupler connector from the M23 PRO series. It features a straight design with shielding and supports standard and ONECLICK fast locking systems. The connector has 17 positions with pin-type contacts designed for solder connections. Constructed with a PBT insulating body, it offers an insertion/withdrawal cycle rating of 100. Rated for 8A current, this male plug component is suitable for signal applications.

Feature Summary

• Straight shielded design compatible with standard and ONECLICK fast locking systems
• 17-position configuration with pin-type contacts for signal transmission
• Solder connection method ensuring secure electrical interface
• Durable PBT insulating body construction

Applications

• Industrial signal transmission systems
• M23 PRO series coupling assemblies
• Standard and ONECLICK fast locking system integration

Procurement Notes

Verify the exact part number 1467458 or its equivalent M23-17P1N129004S against official Phoenix Contact documentation to ensure compatibility with your specific application requirements. Confirm that the 17-pin configuration and solder termination method align with your assembly needs. Check for any specific environmental ratings or certifications required for your installation context before finalizing procurement decisions.

Selection Notes

Select this component when a shielded, straight M23 coupler connector is required for signal applications. Ensure compatibility with both standard and ONECLICK locking mechanisms if rapid deployment is necessary. Verify that the 17-pin count matches your circuit design and that solder termination is feasible within your manufacturing process. Consider the 8A current rating and mechanical durability specifications relative to your operational demands.

Part Context

This component belongs to the Phoenix Contact M23 PRO series, which provides robust circular connectivity solutions for industrial environments. The M23 series is known for its compact size and high density, making it suitable for space-constrained applications. Part 1467458 specifically addresses the need for reliable signal transmission with integrated shielding to minimize electromagnetic interference in demanding settings.

Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement consideration based on verified data.
