1467459

Overview

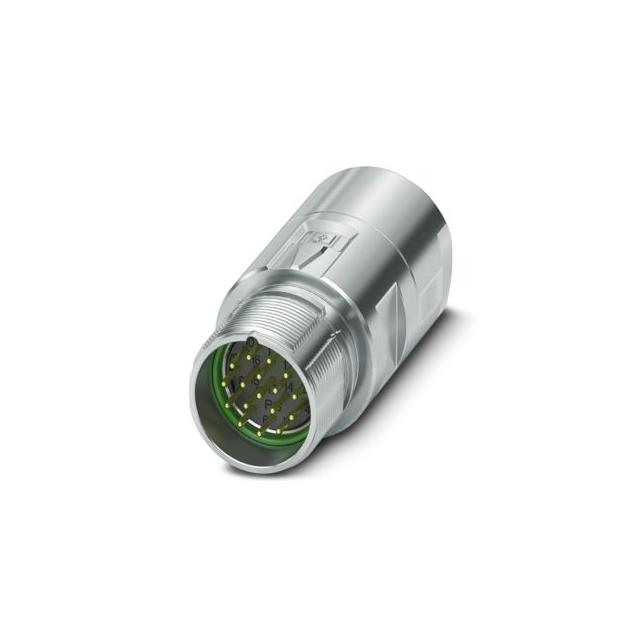

Phoenix Contact part number 1467459 is an M23 PRO series coupler connector designed for signal applications. It features a straight housing configuration with shielded construction to ensure electrical protection. The connector utilizes a solder termination method and employs male pin contacts. It supports a standard locking mechanism compatible with the ONECLICK fast locking system, providing secure engagement in industrial environments.

Feature Summary

• Straight design with shielded housing for signal integrity
• Solder termination for reliable contact connection
• Compatible with standard and ONECLICK fast locking systems

Applications

• Industrial signal transmission
• Control cabinet wiring
• Automation equipment connections

Procurement Notes

Verify the specific datasheet version before procurement to confirm current compliance standards such as UL Recognised or EAC. Ensure the mating connector matches the M23 PRO series specifications. Confirm that the soldering process aligns with the manufacturer's thermal guidelines to maintain contact reliability and housing integrity during assembly.

Selection Notes

Select this component when a shielded, straight M23 coupler is required for signal lines. The choice depends on the need for compatibility with both standard and ONECLICK locking mechanisms. Verify that the 17-position pin configuration meets the circuit requirements. Consider the solder termination method if crimp options are not suitable for the application environment.

Part Context

This part belongs to the Phoenix Contact M23 PRO series, which focuses on robust circular connectors for industrial use. The M23 size provides higher density compared to smaller M12 variants. The PRO series typically emphasizes durability and standardized interfaces for automation tasks requiring reliable signal transmission.

Replacement Considerations

Direct substitutes must match the M23 size, 17 positions, straight orientation, and shielded design. Verify compatibility with the ONECLICK system if that feature is critical. Generic M23 connectors may lack the specific locking mechanism or shielding effectiveness of the PRO series.
