1467461

Overview

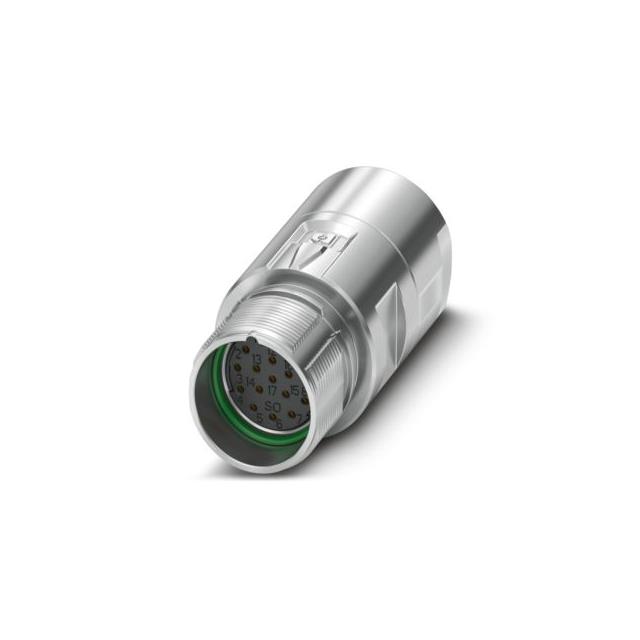

Phoenix Contact part number 1467461, also identified as M23-17S1N129003S, is a straight coupler connector from the M23 PRO series. It features 17 positions with female solder contacts designed for signal applications. The unit includes shielding and supports standard and ONECLICK fast locking systems. Dimensions include a height of 17.0 mm and width across flats of SW29. The operating temperature range spans from -20°C to 70°C.

Feature Summary

• Straight design with integrated shielding for protection against interference
• Compatible with standard and ONECLICK fast locking systems
• Female solder contacts for secure wiring connections

Applications

• Signal transmission in industrial automation
• Machine building interconnects
• Control cabinet wiring

Procurement Notes

Verify the specific suffix codes against official Phoenix Contact documentation to ensure exact mechanical and electrical compatibility. Confirm that the solder contact type matches your assembly requirements. Cross-reference the GTIN code 4063151863777 for accurate identification during sourcing processes.

Selection Notes

Select this component when a shielded, straight M23 connector with 17 positions is required. Ensure the mating environment accommodates the specified -20°C to 70°C temperature range. Verify that the ONECLICK or standard locking mechanism aligns with the system's installation constraints.

Part Context

This connector belongs to the M23 PRO series by Phoenix Contact, engineered for robust industrial signal applications. The M23 interface provides high density and reliable performance in demanding environments. The product line emphasizes durability and ease of installation through standardized locking mechanisms.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
