1467463

Overview

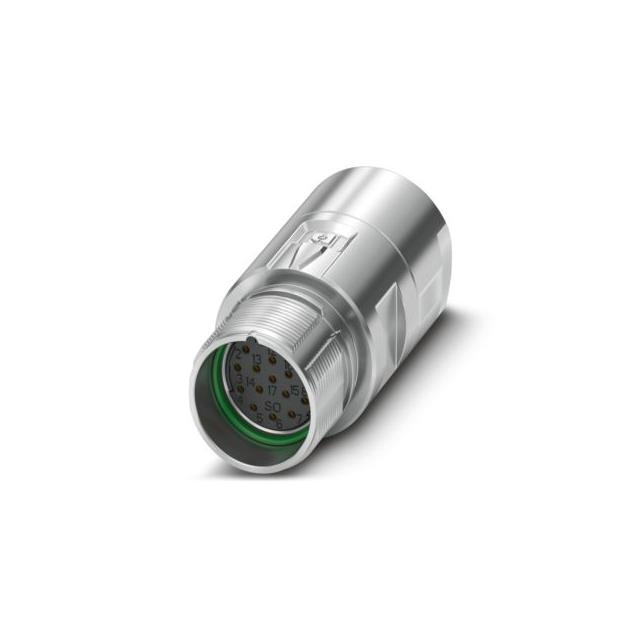

The Phoenix Contact 1467463 is a signal coupler connector from the M23 PRO series. It features a straight, shielded design with 17 positions and female solder contacts. The component supports standard lock and ONECLICK fast locking systems.

Feature Summary

• Designed for signal applications within industrial environments
• Compatible with both standard and ONECLICK fast locking mechanisms
• Provides electromagnetic shielding for signal integrity

Applications

• Industrial automation signal transmission
• Machine tool control wiring
• Process instrumentation connections

Procurement Notes

Verify the specific suffix codes against official Phoenix Contact documentation to ensure exact mechanical and electrical compatibility. Confirm that the solder termination type matches your assembly process requirements before procurement.

Selection Notes

Select this model when a shielded M23 coupler with 17 positions is required. Ensure the mating connector supports the ONECLICK system if rapid connection is needed. Verify voltage and current ratings align with the specific signal application constraints.

Part Context

This part belongs to the M23 PRO series of circular connectors. It serves as a coupler interface, bridging cable assemblies in modular industrial setups. The series emphasizes robust connectivity for demanding factory floor conditions.

Replacement Considerations

Cross-reference with Phoenix Contact part number M23-17S1N1290DUS for equivalence. Ensure substitute parts maintain the same 17-position count and solder contact configuration.
