1467476

Overview

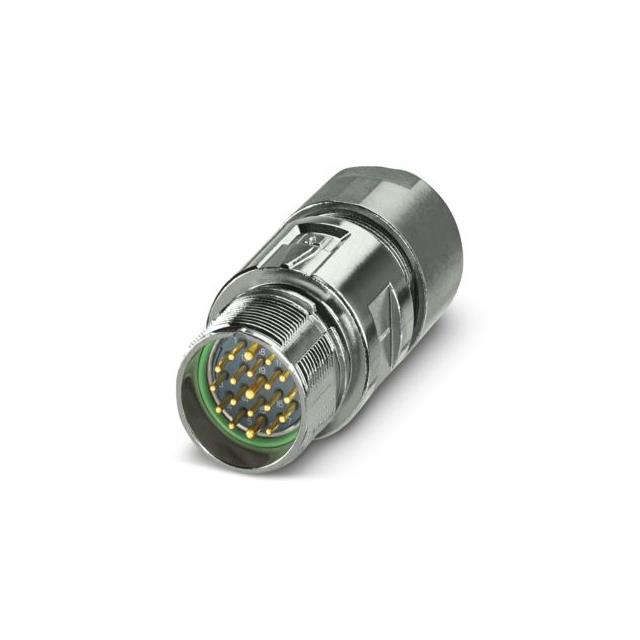

Phoenix Contact part number 1467476 is an M23 PRO series coupler connector designed for signal applications. It features a straight, shielded plug configuration with 19 positions (16+3). The component utilizes solder termination and supports standard and ONECLICK fast locking systems. It is rated for signal transmission within industrial environments.

Feature Summary

• Shielded construction for electromagnetic protection
• Compatible with standard and ONECLICK fast locking mechanisms
• Straight design for compact routing

Applications

• Industrial signal transmission
• Automation system interconnections
• Sensor and actuator linking

Procurement Notes

Verify the specific datasheet for 1467476 to confirm pinout details and mating compatibility. Ensure the application environment requires the specified shielding and locking type. Cross-reference with official Phoenix Contact documentation to validate technical specifications before integration.

Selection Notes

Select this model when a shielded M23 coupler with 19 positions is required. The ONECLICK compatibility offers faster assembly compared to standard locking. Verify that the straight orientation fits the available panel or cable space constraints.

Part Context

This component belongs to the M23 PRO series by Phoenix Contact. It serves as a robust interconnect solution for industrial control systems. The M23 form factor provides high density and durability for demanding operational conditions.

Replacement Considerations

Check for direct equivalents in the M23 PRO line. Verify pin count and shielding requirements match exactly. Consult manufacturer substitution guides for compatible alternatives.

FAQ

What locking system does this connector support?

It supports both standard and ONECLICK fast locking systems.

Is this connector shielded?

Yes, it is a shielded coupler connector.
