1467479

Overview

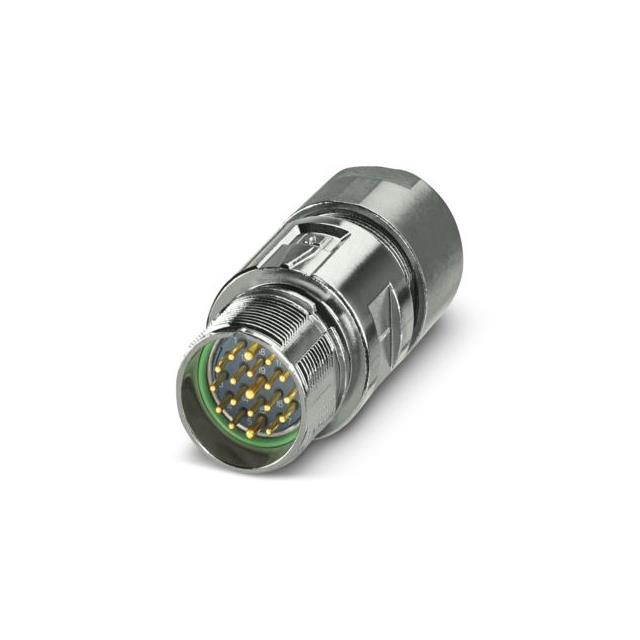

Phoenix Contact part number 1467479 is a M23 PRO series coupler connector designed for signal applications. It features a straight, shielded housing with a standard direction of rotation and utilizes a solder connection method. The connector provides 19 positions, configured as 16 data contacts and 3 power contacts. It supports both standard locking and ONECLICK fast locking systems.

Feature Summary

• Supports standard and ONECLICK fast locking systems
• Shielded design for signal integrity
• Solder contact termination

Applications

• Industrial signal transmission
• Automation system interconnections
• Machine tool wiring

Procurement Notes

Verify the exact part number 1467479 against official Phoenix Contact documentation to ensure compatibility with your specific application requirements. Confirm that the M23 PRO series specifications meet your environmental and electrical needs before procurement.

Selection Notes

Select this component when a shielded M23 coupler connector with solder termination is required. Ensure the application supports the 16+3 position configuration and utilizes either standard or ONECLICK locking mechanisms for secure connections.

Part Context

This component belongs to the M23 PRO series from Phoenix Contact, which offers robust circular connectors for industrial environments. The series is known for its reliability in demanding automation tasks, providing secure signal and power transmission through standardized interfaces.

Replacement Considerations

Consult Phoenix Contact cross-reference tools for verified substitutes. Ensure any replacement maintains the M23 form factor, 19-position layout, and shielding characteristics to preserve system compatibility.

FAQ

What is the contact configuration for this connector?

The connector has 19 positions total, consisting of 16 data contacts and 3 power contacts.

Does this connector support fast locking?

Yes, it is compatible with both standard locking and ONECLICK fast locking systems.
