Overview

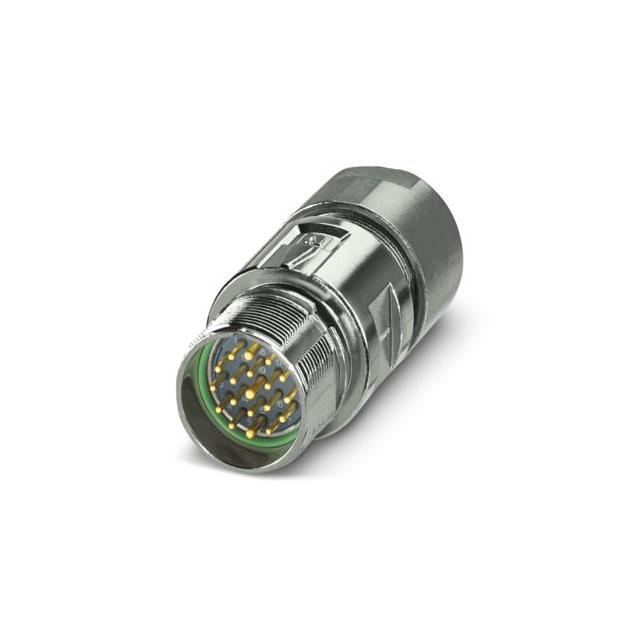

Phoenix Contact part number 1467480, identified as M23-19P1N129004S, is a shielded straight coupler connector from the M23 PRO series. It features a male plug configuration with 19 positions (arranged as 16 signal and 3 power). The component utilizes a solder termination method and is designed for standard and ONECLICK fast locking systems. It supports round cables for both flexible and fixed installations, including damp-room cable types.

Feature Summary

• Shielded construction for signal integrity in the M23 PRO series
• Compatible with standard and ONECLICK fast locking mechanisms
• Designed for deep device socket applications

Applications

• Signal transmission in industrial automation
• Flexible and fixed cable installations
• Damp-room environment connections

Procurement Notes

Verify the specific datasheet for the M23-19P1N129004S designation to confirm pinout details and environmental ratings. Ensure compatibility with mating female connectors within the M23 PRO series. Check for any specific ordering suffixes that may alter mechanical or electrical characteristics before finalizing procurement.

Selection Notes

Select this component when a shielded M23 male coupler is required for signal applications. The 19-position layout accommodates mixed signal and power needs. Consider the straight form factor and solder termination requirements during PCB or panel design integration.

Part Context

This connector belongs to Phoenix Contact's M23 PRO series, which provides robust connectivity solutions for industrial environments. The M23 size offers a compact footprint while maintaining high pin counts. The PRO series emphasizes durability and standardized locking for reliable field connections.

Replacement Considerations

Direct substitutes must match the M23 size, 19-pin count, male plug type, and shielding requirements. Verify that alternative components support the same fast locking system and solder termination method to ensure mechanical and electrical interchangeability.
