1467481

Overview

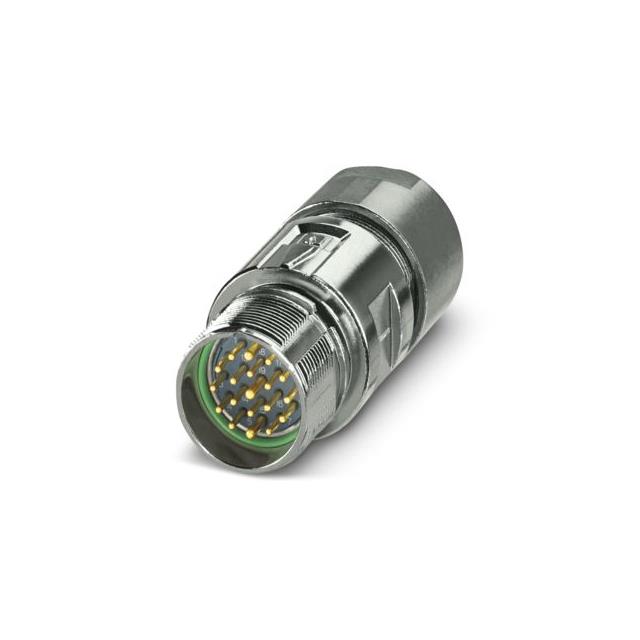

The Phoenix Contact 1467481 is an M23 PRO series coupler connector designed for signal applications. It features a straight, shielded housing with 19 contact positions arranged as 16+3. The component utilizes pin and solder connections for cable attachment within a specified diameter range. It supports standard and ONECLICK fast locking systems with a standard direction of rotation.

Feature Summary

• Shielded construction for signal integrity
• Compatible with standard and ONECLICK fast locking mechanisms
• Solder-based cable termination method

Applications

• Industrial automation signal transmission
• M23 PRO series mating assemblies
• Shielded circular connector interfaces

Procurement Notes

Verify the specific datasheet version to confirm exact current ratings and voltage specifications, as these parameters can vary by application context. Ensure compatibility with the intended ONECLICK or standard locking system requirements before procurement.

Selection Notes

Select this model when a straight, shielded M23 coupler is required for signal applications. Confirm that the 16+3 contact configuration matches the circuit design needs. Verify that the solder termination method aligns with available assembly tools and processes.

Part Context

This component belongs to the Phoenix Contact M23 PRO series, which provides robust circular connectivity solutions. The 1467481 part number specifically identifies the coupler variant with 19 positions, distinguishing it from plug or socket variants within the same M23 family.

Replacement Considerations

Direct substitutes include other Phoenix Contact M23 PRO couplers with identical 16+3 positioning and shielding characteristics. Verify mechanical dimensions and locking system compatibility before substitution.
