1467483

Overview

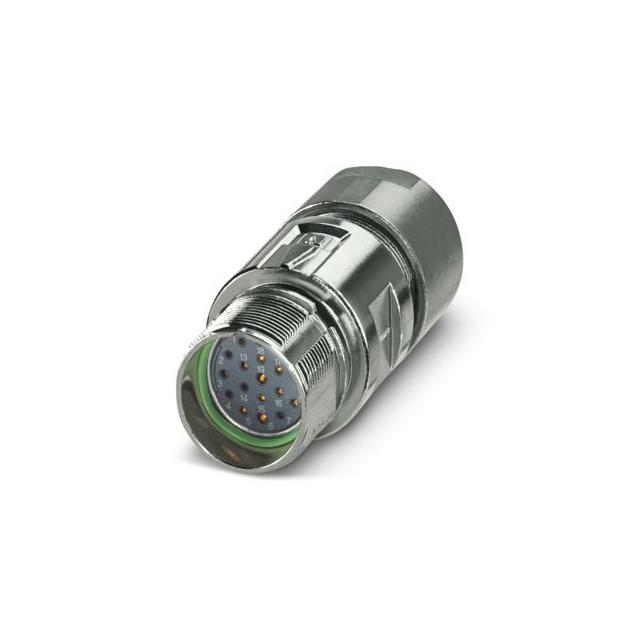

Phoenix Contact part number 1467483, also identified as M23-19S1N129003S, is a circular coupler connector from the M23 PRO series. It features a straight, shielded design with 19 positions (16+3). The connector utilizes a female contact type with solder termination for signal applications. It supports both standard and ONECLICK fast locking systems.

Feature Summary

• Straight shielded coupler connector design
• Compatible with standard and ONECLICK fast locking systems
• Female contacts with solder termination

Applications

• Signal transmission in industrial automation
• Equipment interconnection requiring robust shielding
• M23 PRO series mating assemblies

Procurement Notes

Verify the specific ordering code against the manufacturer's current catalog to ensure compatibility with required locking mechanisms. Confirm that the solder termination style matches your cable preparation process. Check for any updated environmental certifications or material declarations relevant to your deployment region.

Selection Notes

Select this component when a shielded M23 coupler is required for signal integrity. Ensure the mating connector supports the ONECLICK system if rapid connection is needed. Verify that the straight orientation fits the available panel space and cable routing constraints within the enclosure design.

Part Context

This component belongs to the Phoenix Contact M23 PRO series, designed for high-density signal applications. The M23 form factor provides a compact interface suitable for modern industrial control panels. The PRO series typically emphasizes durability and standardized locking mechanisms for reliable field performance.

Replacement Considerations

Direct substitutes must match the M23 size, 19-position configuration, and shielded straight housing. Verify that alternative brands support the same locking system requirements. Cross-referencing with Phoenix Contact's official replacement guide is recommended for verified equivalents.
