Product Detailed Parameters
- Description：Interconnect Misc
- Series：*
- Mfr：Phoenix Contact
- Package：Bulk
Download product information
Overview

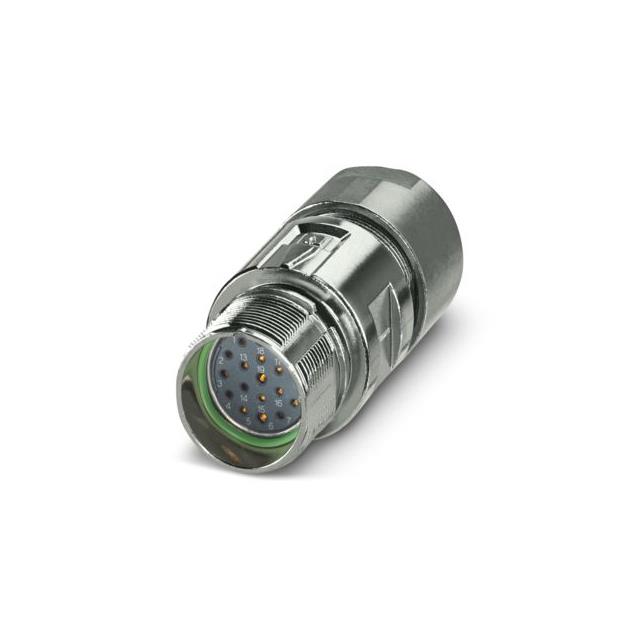

Phoenix Contact part number 1467484, also identified as M23-19S1N129004S, is a straight coupler connector from the M23 PRO series. It features a shielded design with 19 positions (16 signal and 3 power). The connector utilizes female solder cup contacts for secure wiring. It supports both standard and ONECLICK fast locking systems, ensuring reliable mating in industrial environments.
Feature Summary
- Straight configuration with integrated shielding for signal integrity
- Compatible with standard and ONECLICK fast locking mechanisms
- Female socket contacts designed for solder cup termination
Applications
- Plant engineering signal connections
- Controller system interconnects
- Electrical device engineering applications
Procurement Notes
Verify the specific ordering suffix to confirm the exact contact arrangement and locking mechanism variant. Ensure compatibility with the mating housing or cable assembly regarding the ONECLICK or standard locking requirement. Confirm that the solder cup termination method aligns with your assembly process capabilities before procurement.
Selection Notes
Select this component when a shielded M23 solution is required for plant or controller engineering. The choice between standard and ONECLICK locking depends on the mating partner's interface. Verify that the 19-position layout matches the circuit requirements, specifically the separation of 16 signal and 3 power positions.
Part Context
This connector belongs to the M23 PRO series, which is designed for robust industrial automation tasks. The M23 form factor provides high density and durability. The PRO series typically emphasizes ease of assembly and reliable performance in demanding electrical device engineering settings compared to basic industrial connectors.
Replacement Considerations
Direct substitutes must match the M23 size, 19-pin count, straight orientation, and shielding. Verify if the replacement supports the same ONECLICK or standard locking system to ensure mechanical compatibility without adapter usage.
