1467486

Overview

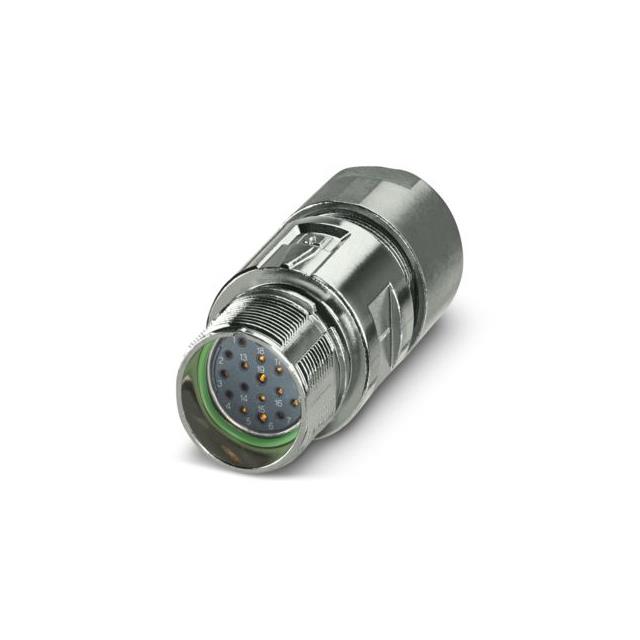

Phoenix Contact part number 1467486, model M23-19S1N1290DUS, is a straight coupler connector from the M23 PRO series. It features 19 positions (16+3) with female solder contacts. The unit includes shielding and supports standard and ONECLICK fast locking systems. Operating temperature ranges from -20°C to 70°C. Housing material is polyamide (PA). Dimensions include a height of 17.0 mm and width across flats of SW29. Protection class is IP66.

Feature Summary

• Designed for signal applications with integrated shielding for protection
• Compatible with both standard and ONECLICK fast locking systems
• Straight design with female solder contacts for secure connection

Applications

• Signal transmission in industrial automation
• Connections requiring ONECLICK fast locking mechanisms
• Shielded environments needing IP66 protection

Procurement Notes

Verify that the specific order matches Phoenix Contact part number 1467486 and model M23-19S1N1290DUS. Confirm the requirement for 19-position female solder contacts and compatibility with the ONECLICK system. Ensure environmental ratings meet the -20°C to 70°C operating range and IP66 protection class needs before purchase.

Selection Notes

Select this component when a straight M23 coupler connector is required for signal applications. It is suitable for systems utilizing either standard or ONECLICK locking mechanisms. The choice is appropriate where shielding is necessary and the housing must withstand temperatures between -20°C and 70°C. Verify that the 19-position configuration with female solder contacts aligns with the circuit design requirements.

Part Context

This component belongs to the M23 PRO series by Phoenix Contact, designed for robust industrial connectivity. The M23 series is widely used in automation for reliable signal and power transmission. Part 1467486 specifically addresses applications needing a straight, shielded coupler with versatile locking options.

Replacement Considerations

Ensure any substitute maintains the M23 form factor, 19-position layout, and female solder contact type. Compatibility with ONECLICK systems and IP66 rating must be verified. Check dimensional constraints, particularly the 17.0 mm height and SW29 width across flats.

FAQ

What locking systems are supported by this connector?

The connector supports both standard locking and the ONECLICK fast locking system.

Is this connector shielded?

Yes, the M23-19S1N1290DUS includes shielding for added protection against interference.
