1468048

Overview

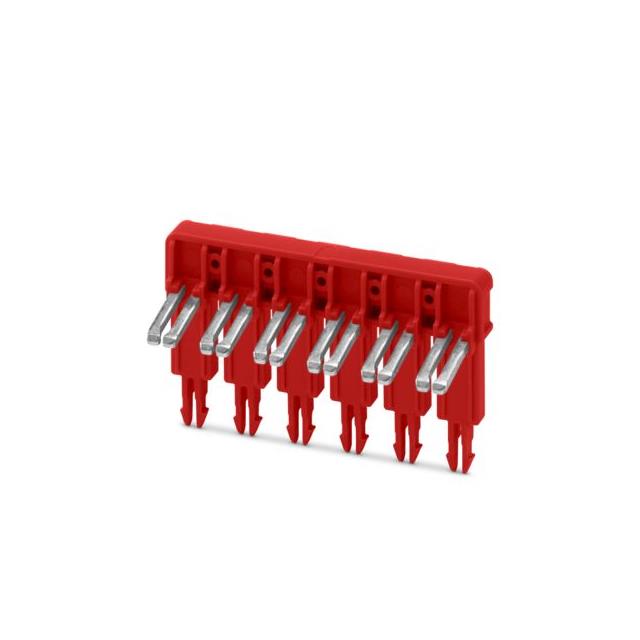

Phoenix Contact part number 1468048 is a bridge bar, specifically the SB-MEA 6-8 model, designed for use with terminal blocks. It features six positions and is colored red (RAL3001). The component has physical dimensions of 48.8 mm in width, 28.6 mm in depth, and 13.5 mm in height. It serves as a flexible potential distribution accessory, enabling uniform bridging across multiple poles within the terminal block system.

Feature Summary

• Provides flexible potential distribution through uniform bridging accessories
• Ensures safe electrical connection across multiple poles

Applications

• Terminal block systems requiring multi-pole bridging
• Industrial control panels needing uniform potential distribution
• Electrical assemblies utilizing Phoenix Contact terminal blocks

Procurement Notes

Verify that the required number of positions matches the six-position specification of the SB-MEA 6-8. Confirm compatibility with the specific terminal block series intended for installation. Ensure the red color coding meets project requirements. Check mechanical fit against the 48.8 x 28.6 x 13.5 mm dimensions. Validate that the application does not require different current ratings or materials.

Selection Notes

Select this bridge bar when a six-position solution is needed for terminal block interconnection. Consider the physical footprint of 48.8 mm width and 13.5 mm height for panel layout constraints. Choose based on the requirement for flexible potential distribution rather than fixed wiring. Verify that the standard red coloration aligns with visual identification standards in the design.

Part Context

The 1468048 belongs to the SB series of bridge bars from Phoenix Contact. These components are auxiliary parts designed to enhance the functionality of main terminal blocks by allowing easy electrical linking between adjacent units. The SB-MEA variant specifically supports multi-pole configurations, simplifying assembly processes in complex electrical setups.

Replacement Considerations

No public confirmed substitute part numbers are available.
