1473127

Overview

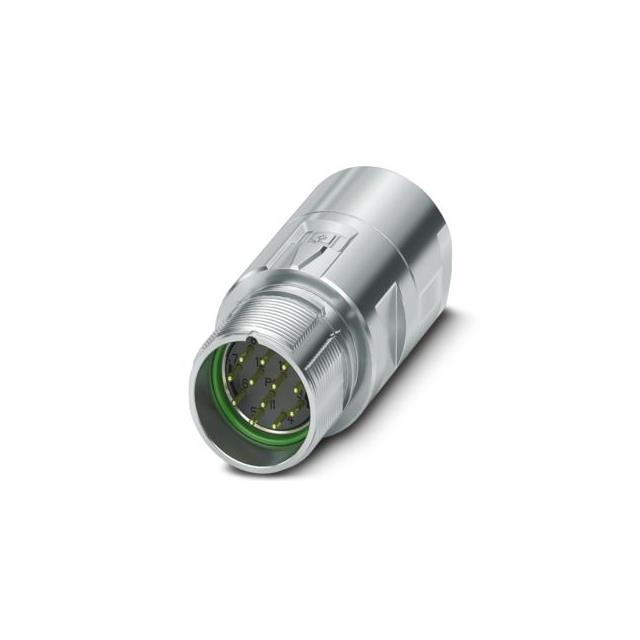

Phoenix Contact part number 1473127 is an M23 PRO series circular connector assembly designed for signal applications. It features a straight, shielded housing with a reverse rotation direction and utilizes a pin plug contact type with solder termination. The connector supports standard locking mechanisms and the ONECLICK quick-connect system. It is engineered to provide reliable electrical connections in industrial environments requiring robust data or signal transmission capabilities.

Feature Summary

• Supports ONECLICK quick-connect system for rapid installation
• Shielded design ensures signal integrity in electromagnetic environments
• Reverse rotation locking mechanism secures connection stability

Applications

• Industrial signal transmission systems
• M23 PRO series equipment integration
• Automated machinery control interfaces

Procurement Notes

Verify the specific datasheet version and physical dimensions against the application requirements before procurement. Confirm that the reverse rotation locking mechanism aligns with the mating connector specifications. Ensure the ONECLICK compatibility matches the existing installation tools and procedures. Cross-reference the shielding effectiveness with the environmental noise levels of the target deployment site.

Selection Notes

Select this component when a shielded M23 connector with reverse locking is required for signal applications. Consider the ONECLICK feature if rapid assembly is a priority. Evaluate the reverse rotation direction to ensure it does not conflict with adjacent components or space constraints. Verify the solder termination method suits the available PCB or cable preparation techniques.

Part Context

This component belongs to the Phoenix Contact M23 PRO series, which focuses on high-performance circular connectors for demanding industrial settings. The series emphasizes reliability and ease of use through standardized locking and quick-connect features. Part 1473127 specifically addresses signal transmission needs within this broader product family.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
