1474487

Overview

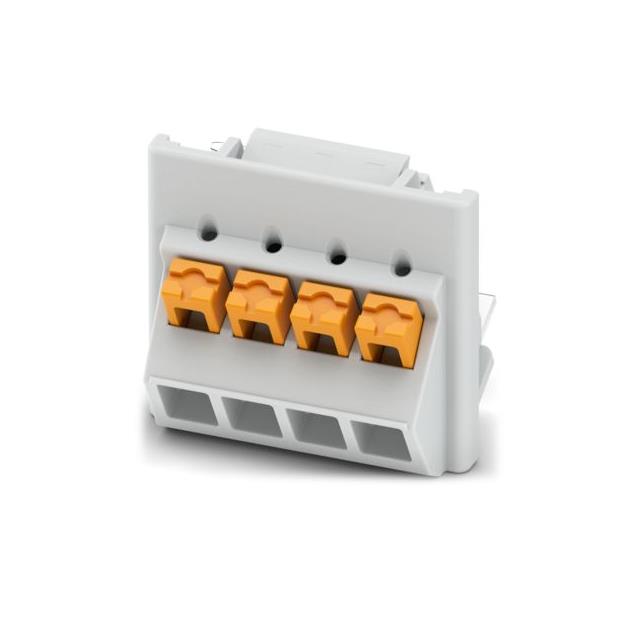

The Phoenix Contact 1474487 is a PCB terminal block with model designation ICC25-TP2,5/4L5,0. It features a nominal current capacity of 18 A and a rated voltage of 300 V (III/2). The component supports a nominal cross-section of 2.5 mm² and contains 4 potentials arranged in a single row. It utilizes push-in technology for wiring and offers orthogonal alignment with the PCB.

Feature Summary

• Push-in connection technology for quick and easy wiring
• Orthogonal alignment with the PCB for optimum accessibility
• Designed for use in DIN-rail-mounted devices

Applications

• DIN-rail-mounted device integration
• PCB terminal connections requiring orthogonal alignment
• Industrial control panel wiring

Procurement Notes

Verify the complete part number including suffixes such as -7035 to ensure exact specification matching. Confirm that the required nominal current of 18 A and rated voltage of 300 V align with your circuit design constraints before procurement.

Selection Notes

Select this component when orthogonal PCB mounting is required for improved accessibility in confined spaces. Ensure the application supports the 2.5 mm² nominal cross-section and 18 A current rating. Verify compatibility with push-in termination methods versus screw-type alternatives.

Part Context

This component belongs to the ICC25 series of printed circuit board terminals from Phoenix Contact. The series is characterized by high current density and compact design suitable for dense PCB layouts. The specific model integrates four independent potentials within a single housing structure.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
