1474497

Overview

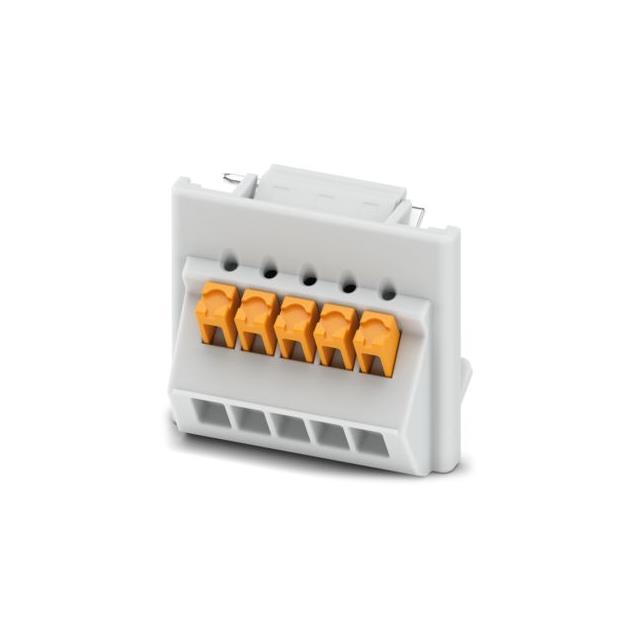

The Phoenix Contact 1474497 is a PCB terminal block from the COMBICON Terminals S product line. It features a nominal current rating of 8 A and a rated voltage of 150 V (III/2). The component supports a nominal cross-section of 1.5 mm² with a pitch of 3.5 mm. It has 5 positions arranged in a single row and utilizes a push-in spring connection method. The mounting type is wave soldering, and it is available in light gray and orange colors.

Feature Summary

• Utilizes push-in spring connection technology for secure wire termination without tools.
• Designed for wave soldering mounting to ensure stable integration onto printed circuit boards.
• Constructed with copper alloy contacts featuring tin plating for reliable conductivity.

Applications

• Industrial control panel wiring
• Signal distribution in automation systems
• Power supply connections for low-voltage circuits

Procurement Notes

Verify the specific ordering suffix matches the required configuration. Confirm that the pin pitch and number of positions align with the PCB footprint design. Ensure the nominal current and voltage ratings meet the circuit requirements. Check RoHS compliance status if restricted substances are a concern for the target market.

Selection Notes

Select this component when a through-hole terminal block with push-in spring termination is required. The 3.5 mm pitch and 5-position format suit compact board layouts. Consider the 8 A current rating and 150 V voltage limit for appropriate circuit protection. Verify compatibility with wave soldering processes during assembly planning.

Part Context

This part belongs to the COMBICON Terminals S series by Phoenix Contact. The series offers standardized PCB terminal blocks for various industrial applications. The ICC25-TP1,5/5L3,5 designation indicates the specific model within this family, defining its electrical and mechanical characteristics.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer catalogs for equivalent products with matching pitch, current rating, and connection method.
