1474499

Overview

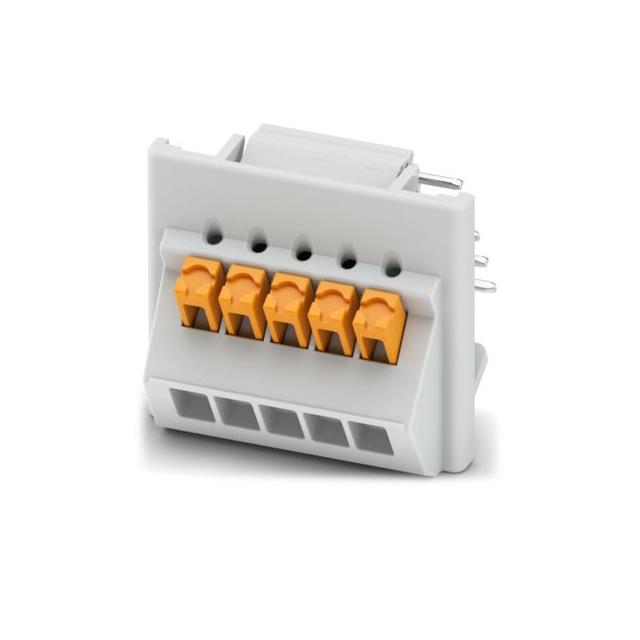

The Phoenix Contact 1474499 is a pluggable terminal block designed for printed circuit board mounting. It features five positions with a 3.50mm pitch and utilizes through-hole technology for secure attachment. The housing is constructed from polyamide (PA). Electrical specifications include a nominal current of 8 A, a rated voltage of 150 V, and a nominal cross-section of 1.5 mm². The component measures 21.03 mm in length, 25 mm in width, and 22.4 mm in height.

Feature Summary

• Horizontal wire-to-board connection design
• Through-hole mounting for PCB integration
• Polyamide housing material

Applications

• Industrial control panel wiring
• Signal distribution on PCBs
• Low-voltage power connections

Procurement Notes

Verify the specific part number ICC25-TP1,5/5R3,5-7035 against official Phoenix Contact documentation to ensure compatibility with your assembly requirements. Confirm that the 3.50mm pitch and 5-position configuration match your PCB footprint. Check for RoHS compliance status if required by your manufacturing standards before finalizing procurement.

Selection Notes

Select this component when a horizontal, 5-position terminal block with a 3.50mm pitch is required for PCB mounting. Ensure the application voltage does not exceed 150 V and the current load remains within the 8 A limit. Verify that the 1.5 mm² nominal cross-section accommodates the intended wire gauge for reliable electrical contact.

Part Context

This model belongs to the ICC25 series of pluggable terminal blocks from Phoenix Contact. The series is characterized by its compact design and suitability for dense PCB layouts. The 1474499 variant specifically provides five potentials, offering a balanced solution for multi-wire connections in space-constrained electronic assemblies.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
