1474500

Overview

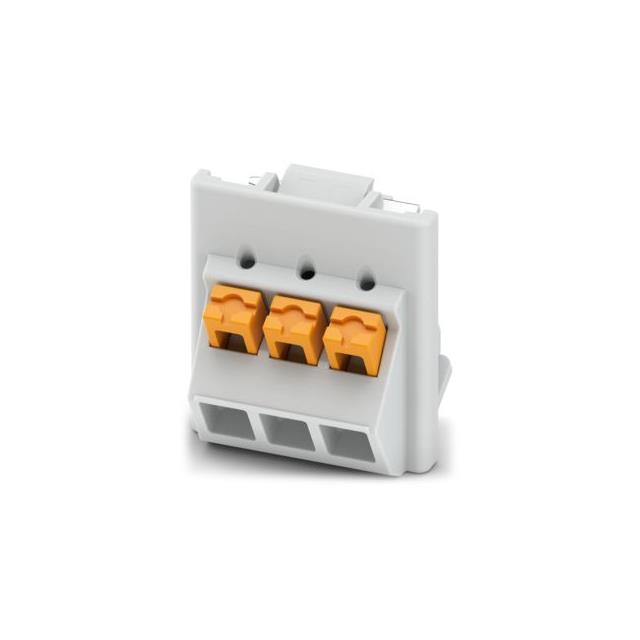

Phoenix Contact part number 1474500 is a 3-position terminal block designed for wire-to-board connections. It features a 5.00 mm pitch and utilizes a 45-degree (135-degree) angled orientation with a board mount configuration. The component employs through-hole technology for PCB integration. This specific model is categorized as a fixed connector within the Phoenix Contact portfolio, intended for reliable electrical interconnection in electronic assemblies.

Feature Summary

• Provides secure wire-to-board electrical interconnection via a dedicated terminal block design.
• Features a 45-degree angled housing geometry to facilitate optimized spatial arrangement on printed circuit boards.
• Utilizes through-hole mounting technology for robust mechanical attachment to the substrate.

Applications

• General electronic assembly requiring compact wire-to-board interfaces
• Industrial control systems utilizing Phoenix Contact COMBICON series components
• Automated manufacturing equipment with space-constrained PCB layouts

Procurement Notes

Verify the exact pin count and angular orientation against the schematic before procurement. Confirm that the through-hole footprint matches the target PCB design. Ensure compatibility with the mating wire harness or cable assembly specifications. Cross-reference the manufacturer's latest datasheet to confirm material compliance and environmental ratings for the specific operating conditions.

Selection Notes

Select this component when a low-profile, angled connection is required between wiring and a PCB. The 5.00 mm pitch offers a balance between current carrying capacity and density. Consider the 45-degree angle to reduce board height or manage cable routing direction. Ensure the application environment supports the standard terminal block materials and voltage ratings specified by the manufacturer.

Part Context

This component belongs to the Phoenix Contact terminal block family, specifically designed for industrial and commercial electronics. It serves as a critical interface element, bridging flexible wiring systems to rigid printed circuit boards. The product line emphasizes reliability and ease of installation in automated production environments.

Replacement Considerations

No public substitute part numbers are confirmed in the provided documentation. Verify compatibility with existing PCB footprints and mating connectors before considering alternative manufacturers or different Phoenix Contact series with similar pitch and orientation characteristics.

FAQ

What is the mounting style of part 1474500?

The component uses a through-hole mounting style for securing the terminal block to the printed circuit board.

What is the contact pitch for this terminal block?

The contact pitch is 5.00 mm, allowing for standardized spacing between connection points.
