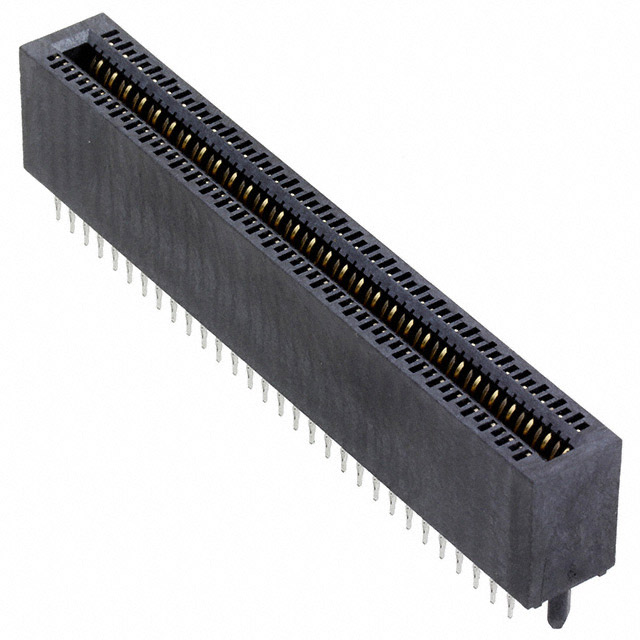

147668-6 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN EDGE DUAL FMALE 60POS 0.050. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 147668-6
- Description：CONN EDGE DUAL FMALE 60POS 0.050
- Series：-
- Mfr：TE Connectivity AMP Connectors
- Package：Tube
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：-
- Number of Positions：60
- Card Thickness：0.093" (2.36mm)
- Number of Rows：2
- Pitch：0.050" (1.27mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Press-Fit
- Contact Material：Beryllium Copper
- Contact Finish：Gold
- Contact Finish Thickness：-
- Contact Type：-
- Color：Black
- Flange Feature：-
- Operating Temperature：-
Edgeboard Connectors datasheet and documents for 147668-6
Edgeboard Connectors Overview
The TE Connectivity AMP Connectors part number 147668-6 is a dual-edge female connector designed for board-to-board applications. It features a centerline pitch of 1.27 mm (0.05 in) and provides 60 positions. The housing material is black plastic, and the component is classified as a non-specified dual edge card type. This connector supports high-density interconnect requirements within its designated system.
Edgeboard Connectors Feature Summary
- Dual-edge female configuration for board-to-board connectivity
- High-density design with 60 positions
- Standard 1.27 mm pitch spacing
Edgeboard Connectors Applications
- Board-to-board interconnect systems
- High-density electronic assemblies
- Industrial control modules
Edgeboard Connectors Procurement Notes
Verify current availability status as this component may be obsolete or discontinued. Confirm specific mechanical dimensions and mating partner compatibility before procurement. Ensure that the dual-edge female gender matches the intended application requirements. Check for any recent product change notices affecting specifications.
Edgeboard Connectors Selection Notes
Select this component for applications requiring a 60-position dual-edge interface with a 1.27 mm pitch. Ensure the mating connector aligns with the female gender specification. Consider the black housing material and non-specified card type constraints. Validate that the board-to-board form factor fits the spatial limitations of the design.
Edgeboard Connectors Part Context
This component belongs to the TE Connectivity AMP Connectors portfolio, specifically within the category of standard edge connectors. It is engineered for reliable signal transmission in dense electronic environments. The manufacturer specializes in interconnection solutions for various industrial and commercial sectors.
Edgeboard Connectors Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify if alternative series from the same manufacturer offer compatible pin counts and pitch specifications.
