Product Detailed Parameters
- Description：Interconnect Misc
- Series：*
- Mfr：Phoenix Contact
- Package：Bulk
Download product information
Overview

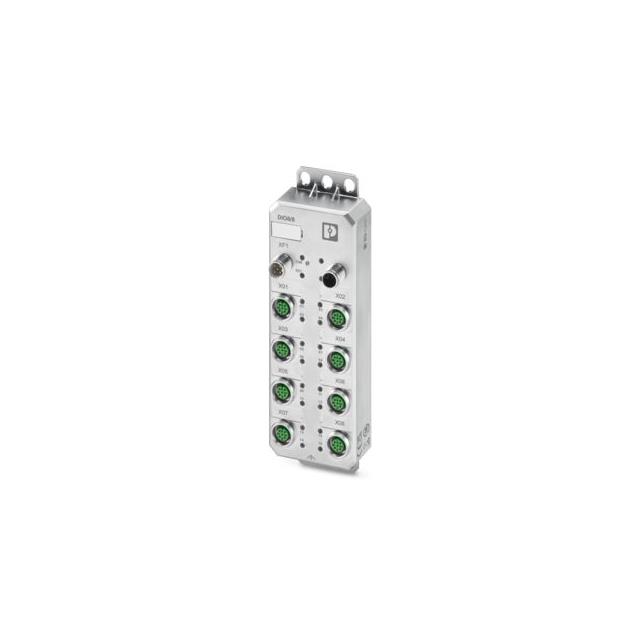

The Phoenix Contact AXL E IOL DIO8/8 M12 6M (Part No. 1480997) is a digital input/output device within the Axioline E system, featuring IO-Link capability. It provides 16 digital channels (8 inputs and 8 outputs) operating at 24 V DC with a total current capacity of 500 mA. The module utilizes M12 connectors for connectivity and supports IO-Link specification V1.1.3.
Feature Summary
- Supports IO-Link specification V1.1.3 via M12 connectors
- Provides single-channel diagnostic capabilities
- Includes short-circuit and overload protection for sensor power
- Features storage device nameplate for identification
Applications
- Industrial automation systems requiring digital I/O expansion
- Integration with IO-Link master stations using Class B ports
- Applications requiring IP65/IP67/IP69 environmental protection ratings
Procurement Notes
Verify the specific ordering suffix and revision level against official Phoenix Contact documentation to ensure compatibility with existing Axioline E infrastructure. Confirm that the required cable length and connector type match the installation environment specifications before procurement.
Selection Notes
Select this module when 16 digital channels are required in a compact form factor with IO-Link functionality. Ensure the host controller supports the necessary IO-Link protocol version and that the power supply can deliver the specified 500 mA total current for the connected loads.
Part Context
This component belongs to the Axioline E series, designed for decentralized I/O applications in industrial environments. It integrates with the broader Phoenix Contact automation ecosystem, offering standardized connectivity and diagnostics for reliable data exchange between field devices and controllers.
Replacement Considerations
Consult official Phoenix Contact substitution lists for verified equivalent models. Generic replacements may lack specific IO-Link compatibility or physical connector alignment required for seamless integration into existing Axioline E networks.
