1480998

Overview

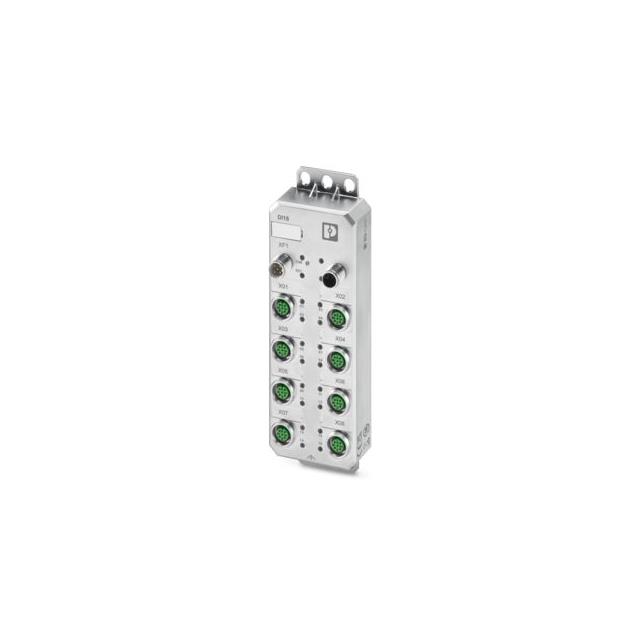

The Phoenix Contact AXL E IOL DI16 M12 6M (Part Number 1480998) is a digital input module within the Axioline E series. It provides 16 digital inputs and features multiple IO-Link ports classified as Class A. The device utilizes M12 connectors with A-coding and five positions for connection. It operates on a 24VDC supply voltage and supports single-channel diagnostics along with diagnostic and status indicators.

Feature Summary

• Connects up to 16 digital inputs using M12 connectors with A-coding and five positions
• Features multiple IO-Link ports classified as Class A for network integration
• Provides single-channel diagnostics with integrated diagnostic and status indicators

Applications

• Connection of digital sensors via IO-Link A-port to IO-Link master stations
• Acquisition of digital signals through IO-Link technology
• Integration into various industrial networks utilizing the Axioline E system

Procurement Notes

Verify the part number 1480998 against official Phoenix Contact documentation to confirm compatibility with your specific IO-Link master and network requirements. Ensure that the M12 A-coded 5-position connector specifications match your existing cabling infrastructure. Confirm that the 24VDC supply voltage aligns with your system's power distribution plan before procurement.

Selection Notes

Select this module when requiring 16 digital inputs with integrated IO-Link capabilities in an Axioline E environment. It is suitable for applications needing single-channel diagnostics and status monitoring. Ensure the application supports Class A IO-Link classification and utilizes compatible M12 A-coded connectors for proper signal acquisition and network connectivity.

Part Context

This component belongs to the Phoenix Contact Axioline E series, designed for modular automation systems. It functions as a digital input extension module, allowing for scalable I/O configurations. The module integrates with the broader Axioline ecosystem, providing standardized connectivity and diagnostic features for industrial control applications.

Replacement Considerations

Consult official Phoenix Contact documentation for verified substitute part numbers within the Axioline E series. Ensure any replacement maintains compatibility with 24VDC operation, M12 A-coded 5-position connectors, and Class A IO-Link classification. Verify that the substitute module supports 16 digital inputs and single-channel diagnostics.

FAQ

What type of connectors does the AXL E IOL DI16 M12 6M use?

It uses M12 connectors with A-coding and five positions for connecting up to 16 digital inputs.

Does this module support single-channel diagnostics?

Yes, the module includes single-channel diagnostics along with diagnostic and status indicators.
