Overview

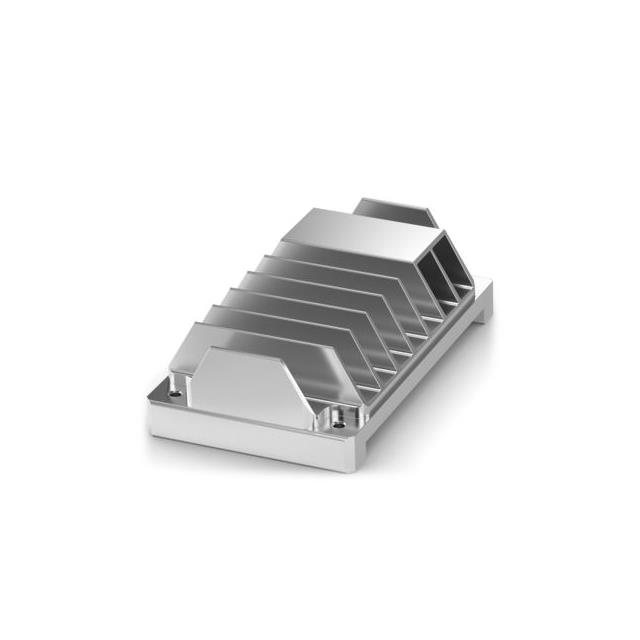

Phoenix Contact part number 1481697 is a heatsink designed for the UCS universal housing series. The component features a half-shell construction made from anodized aluminum, providing efficient thermal management capabilities. It measures 56.8 mm in width and 94.8 mm in height, with a length of 28 mm. Installation requires milling of the housing half-shell to ensure proper fitment.

Feature Summary

• Half-shell design for specific housing integration
• Anodized aluminum material for durability
• Optimized for UCS universal housing series

Applications

• Thermal management for UCS universal housings
• Industrial electronic enclosure cooling
• Power module heat dissipation

Procurement Notes

Verify RoHS compliance status directly with the manufacturer or authorized distributor before procurement, as documentation indicates verification is required. Confirm that the application environment accommodates the necessary milling of the housing half-shell during installation. Ensure the selected housing series matches the UCS designation to guarantee mechanical compatibility.

Selection Notes

Select this component specifically for applications utilizing the Phoenix Contact UCS universal housing series. The half-shell geometry and anodized aluminum composition are fixed attributes; alternative materials or full-shell designs require different part numbers. Verify dimensional constraints against the specific housing variant to ensure the 56.8 mm width and 94.8 mm height fit within the available space.

Part Context

This heatsink belongs to the Phoenix Contact UCS accessory line, intended to enhance thermal performance for industrial control systems. It serves as a passive cooling solution for electronic components housed within the UCS series enclosures. The component complements the modular housing system by providing standardized thermal pathways without requiring active cooling mechanisms.

Replacement Considerations

No public confirmed substitute part numbers are available. The specific half-shell dimensions and anodized aluminum composition are unique to this design. Any replacement must match the UCS housing interface requirements precisely.
