1481699

Overview

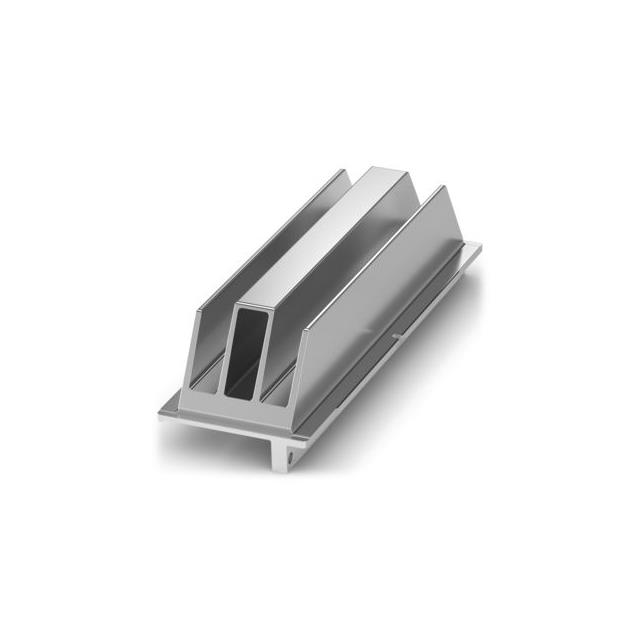

The Phoenix Contact 1481699 is an aluminum heatsink designed for the UCS housing series. It functions as a side panel replacement, featuring an anodized finish for durability. The component measures 116 mm in width and 40.1 mm in height. It is engineered to replace standard side panels, providing thermal management capabilities within industrial enclosure systems while maintaining structural integrity.

Feature Summary

• Designed to replace standard side panels in UCS housing series enclosures
• Constructed from durable aluminum with an anodized surface finish
• Engineered for direct mounting as a sidewall component

Applications

• Thermal management in industrial automation enclosures
• Replacement of standard side panels in UCS housing systems
• Heat dissipation for electronic components within enclosed spaces

Procurement Notes

Verify that the required housing series matches the UCS designation before procurement. Confirm dimensional compatibility, specifically the 116 mm width and 40.1 mm height, against existing enclosure specifications. Ensure the anodized aluminum material meets environmental requirements for the installation site. Cross-reference part number 1481699 with official Phoenix Contact documentation to confirm current manufacturing status and availability.

Selection Notes

Select this component when thermal performance requires replacing non-ventilated side panels with heat-dissipating alternatives. It is suitable for applications where space constraints prevent adding external cooling units. Consider the anodized finish for corrosion resistance in moderate industrial environments. Evaluate whether the UCS series dimensions align with the overall system design before integration.

Part Context

This heatsink belongs to the Phoenix Contact UCS accessory range, which provides modular solutions for industrial housing systems. It complements other UCS components by offering passive cooling options. The product line focuses on standardized dimensions to ensure compatibility across various enclosure configurations in automation and control cabinet applications.

Replacement Considerations

No public confirmed substitute part numbers are available.
