1482516

Overview

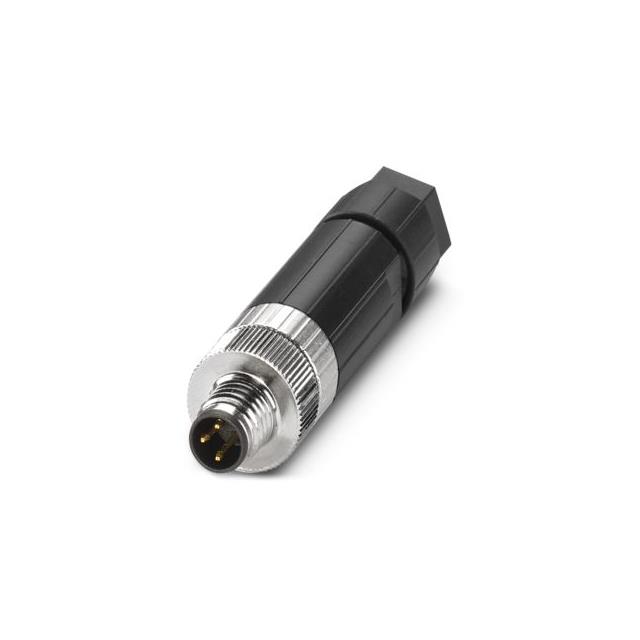

Phoenix Contact part number 1482516 is a circular metric connector from the SACC-M series. It features an M8 thread size with A coding and contains three contacts. The component has a straight body orientation and is rated for 4 amperes current. Voltage ratings are specified at 48 volts AC and 60 volts DC. The connector provides IP65 and IP67 ingress protection levels against dust and water. It utilizes gold-plated contacts to ensure reliable signal transmission.

Feature Summary

• Provides robust environmental sealing suitable for industrial automation environments
• Features A-coded configuration for standardized pin assignment compatibility
• Utilizes straight housing design for compact panel or cable mounting applications

Applications

• Industrial sensor wiring connections
• Actuator interface modules
• Control cabinet signal distribution

Procurement Notes

Verify the specific datasheet revision when sourcing, as manufacturer updates may alter compliance markings or minor dimensional tolerances. Confirm that the required mating counterpart matches the M8 A-coded specification to ensure proper mechanical engagement and electrical continuity in the final assembly.

Selection Notes

Select this component when a compact M8 solution is required for low-current signal transmission. Ensure the application environment does not exceed the 4-ampere current rating. Verify that the IP67 requirement aligns with the operational exposure conditions, noting that sealing depends on proper mating procedures.

Part Context

This connector belongs to the Phoenix Contact SACC-M product family, which specializes in metric circular connectors for industrial control systems. The M8 form factor is widely adopted in factory automation for connecting field devices. This specific model represents a standard straight variant within the broader catalog of metric interconnect solutions.

Replacement Considerations

Public confirmed substitute part numbers only; omit otherwise.
