1482520

Overview

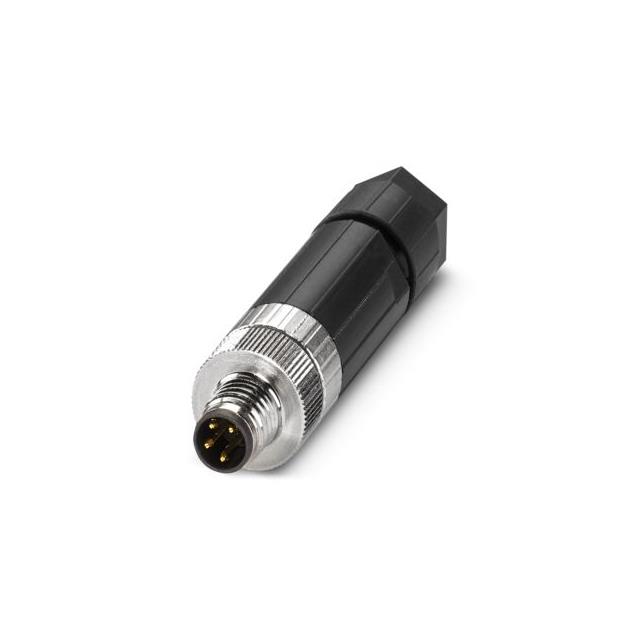

The Phoenix Contact 1482520 is a universal, unshielded circular metric connector featuring a straight M8 plug configuration with four positions. It utilizes coding A and employs a push-lock spring connection mechanism for secure termination. The housing is constructed from zinc die-cast material with a nickel-plated finish, providing durability in industrial environments. Rated for 4A current at 30V, it supports wire cross-sections of 0.14 to 0.5 mm² for both solid and stranded conductors. The component offers an IP65 protection rating when mated and operates within a temperature range up to 85°C.

Feature Summary

• Straight M8 plug design with coding A for standardized compatibility
• Push-lock spring connection system for rapid and reliable wiring
• Nickel-plated zinc die-cast housing for mechanical robustness
• IP65 rated sealing capability for protected industrial use

Applications

• Industrial sensor and actuator signal transmission
• Automation control panel interconnections
• Machine tool wiring harnesses
• Process instrumentation connections

Procurement Notes

Verify the specific suffix codes against official Phoenix Contact documentation to ensure exact matching of contact arrangement and cable entry type. Confirm that the required IP65 rating is achieved only upon proper mating with compatible receptacles. Check for any updated environmental compliance declarations or RoHS status changes in the latest datasheet revision before finalizing procurement orders.

Selection Notes

Select this model specifically for applications requiring a straight M8 male connector with four contacts and spring termination. Ensure the operating environment does not exceed 85°C or require shielding, as this unit is unshielded. Verify that the mating connector accepts the push-lock spring mechanism and matches the coding A standard to prevent misalignment during installation.

Part Context

This component belongs to the SACC-M series of circular metric connectors manufactured by Phoenix Contact. The series is designed for industrial automation tasks requiring compact, reliable connections. The 1482520 variant specifically addresses needs for unshielded, four-position M8 interfaces with spring-based termination, distinguishing it from screw-terminal or soldering variants within the broader product family.

Replacement Considerations

Direct substitutes must match the M8 size, 4-position count, coding A, and straight orientation. Verify that alternative brands offer identical IP65 performance and current ratings. Cross-reference pinouts and termination methods to ensure functional equivalence without modifying existing wiring harnesses.

FAQ

What is the maximum current rating for this connector?

The connector is rated for a maximum current of 4 Amperes.

Does this connector provide electromagnetic shielding?

No, the 1482520 is an unshielded connector design.

What type of termination method does this model use?

It uses a push-lock spring connection mechanism for wire termination.
