1482521

Overview

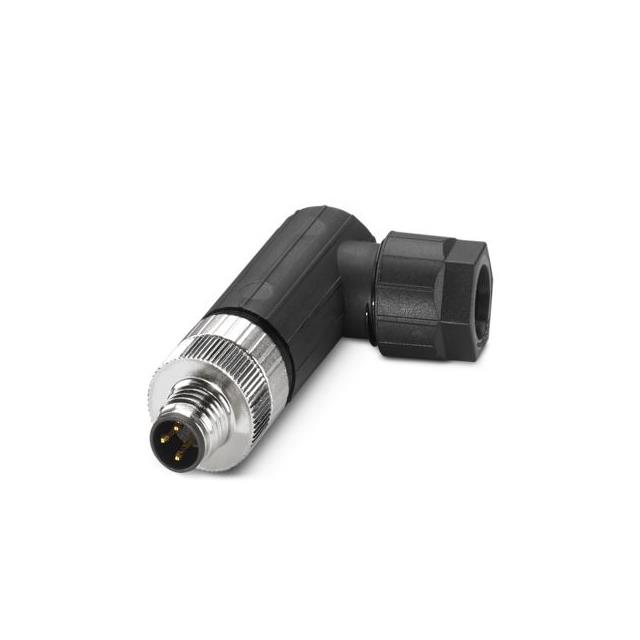

Phoenix Contact part number 1482521 is a circular metric connector belonging to the SACC-M series. It features an M8 thread size with A coding and provides three contacts. The unit has a gold-plated contact finish and supports a current rating of 4 amperes. Voltage ratings are specified at 48 volts AC and 60 volts DC. The connector assembly achieves IP65 and IP67 ingress protection levels against dust and water.

Feature Summary

• Provides reliable electrical interconnection through a standardized M8 threaded interface.
• Ensures environmental sealing integrity in industrial settings via defined ingress protection ratings.
• Utilizes gold plating on contact surfaces to maintain consistent signal and power transmission.

Applications

• Industrial sensor wiring connections
• Actuator signal routing
• Control cabinet internal cabling

Procurement Notes

Verify the specific suffix codes against the manufacturer datasheet to confirm exact pinout and cable entry orientation. Ensure the selected variant matches the required IP rating for the intended installation environment. Cross-reference the official Phoenix Contact documentation to validate compatibility with mating connectors before procurement.

Selection Notes

Select this component when a compact M8 interface is required for low-voltage control signals. The three-position configuration suits simple sensor or actuator applications. Verify that the operating voltage does not exceed the rated limits. Confirm mechanical fit within the available panel space constraints.

Part Context

This component belongs to the Phoenix Contact SACC-M product family, which specializes in circular metric connectors. These units are designed for robust field use and integrate into broader industrial automation systems. The series offers various configurations to meet diverse wiring needs across manufacturing environments.

Replacement Considerations

Consult the official Phoenix Contact cross-reference guide for verified substitute part numbers. Ensure any replacement maintains identical thread size, coding, and contact count. Verify that ingress protection ratings remain compatible with existing enclosure requirements.
