1482522

Overview

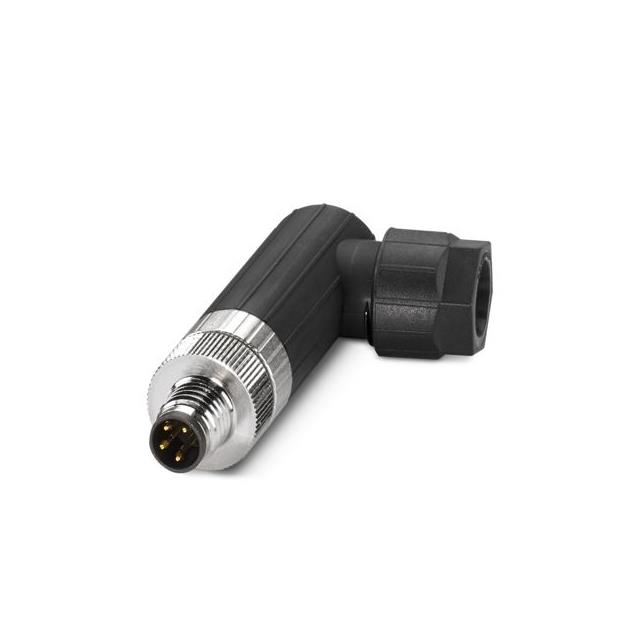

Phoenix Contact model 1482522 is an M8 circular metric connector plug with four contacts. It features a male configuration and push-lock installation method. The connector supports wire cross-sections from 0.14 to 0.5 mm². Rated for 4 A current and 30 V voltage, it meets IP65 and IP67 ingress protection standards. Contacts are made of copper tin with nickel-gold alloy plating. The unit utilizes A-code polarization.

Feature Summary

• Push-lock installation mechanism
• A-code polarization
• Nickel-gold alloy contact plating

Applications

• Industrial sensor connections
• Actuator wiring
• Control cabinet signal transmission

Procurement Notes

Verify the specific product datasheet for the exact technical specifications before integration. Confirm that the push-lock mechanism aligns with mating receptacle requirements. Ensure environmental ratings meet operational conditions. Cross-reference official Phoenix Contact documentation for accurate pinout and material details.

Selection Notes

Select this component when a compact M8 solution with push-lock termination is required. The A-code ensures correct mating orientation. Verify compatibility with existing cable preparation tools for the specified wire range. Consider the nickel-gold plating for corrosion resistance in industrial environments.

Part Context

This part belongs to the SACC series of industrial circular connectors. It is designed for reliable data and signal transmission in automation systems. The M8 form factor allows for space-efficient mounting in control panels and machinery.

Replacement Considerations

Check for direct substitutes within the same M8 series with identical pin counts and coding. Verify mechanical interface compatibility before swapping components.
