1482523

Overview

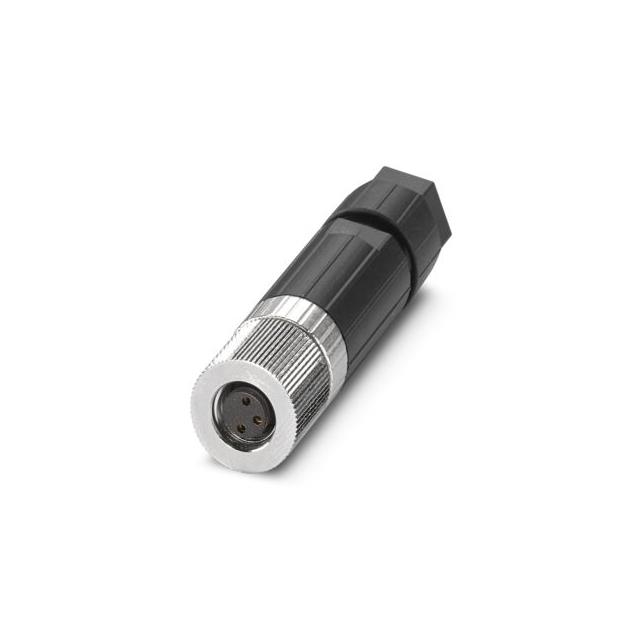

Phoenix Contact part number 1482523, model SACC-M 8FS-3PL-M, is a 3-position circular connector assembly designed for cable-side mounting. It features female sockets with an M8 straight configuration and A coding. The component utilizes a push-lock spring connection mechanism for tool-free installation. Constructed from zinc die-cast material with nickel plating, it supports unshielded applications. The connector accommodates cable outer diameters ranging from 3.5 mm to 5.5 mm.

Feature Summary

• Tool-free push-lock spring connection mechanism
• M8 straight socket configuration with A coding
• Zinc die-cast knurl with nickel plating

Applications

• Industrial sensor wiring
• Actuator connections
• General automation signal transmission

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and mating compatibility. Ensure the application environment aligns with the unshielded design constraints. Confirm that the push-lock spring termination method meets the required strain relief standards for the target installation. Cross-reference the M8 A coding with existing system components to guarantee correct polarity and fit.

Selection Notes

Select this component when a compact, unshielded M8 solution with rapid installation is required. The push-lock feature eliminates the need for screwdrivers during assembly. Verify that the 3.5 mm to 5.5 mm cable diameter range matches the harness specifications. Consider the A coding standard for general-purpose I/O applications within industrial control panels.

Part Context

This part belongs to Phoenix Contact's SACC series of circular connectors. These assemblies are engineered for robust performance in industrial environments. The M8 size offers a compact footprint suitable for space-constrained installations. The series supports various termination methods, with this specific variant focusing on quick spring-lock engagement.

Replacement Considerations

Direct substitutes must match the M8 straight form factor, 3-position count, and A coding. Verify that alternative brands offer compatible push-lock or spring termination mechanisms. Ensure physical dimensions and cable entry ranges are identical to maintain panel fit.
