1482525

Overview

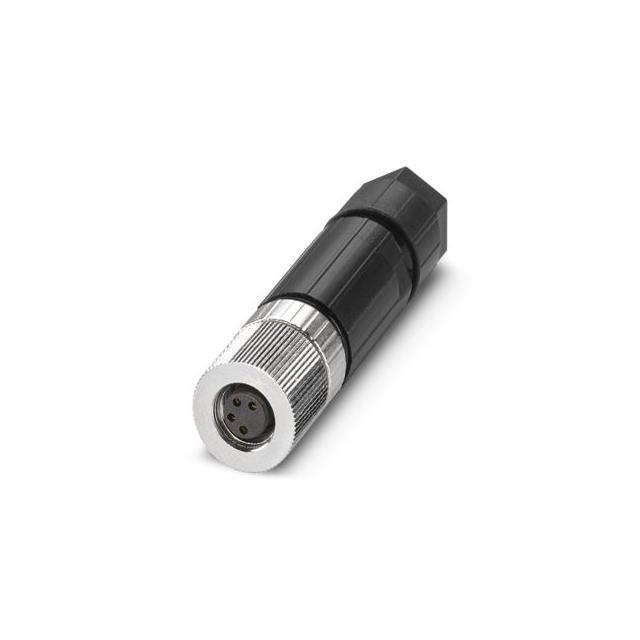

The Phoenix Contact 1482525 is a universal circular connector assembly featuring four positions with female sockets. It utilizes an M8 straight plug configuration with A coding and employs a push-lock spring connection mechanism. The housing is constructed from zinc die-cast material with a nickel-plated finish, while the insert is made of polyamide (PA66). Designed for unshielded applications, it supports cable diameters between 3.5 mm and 5.5 mm and provides IP65 protection.

Feature Summary

• Push-lock spring connection mechanism for secure attachment
• Zinc die-cast housing with nickel-plated finish
• Polyamide (PA66) insert material
• A-coded M8 straight plug design

Applications

• Industrial automation signal transmission
• Sensor and actuator connections
• Control cabinet wiring
• General purpose industrial equipment interfacing

Procurement Notes

Verify that the specific order matches part number 1482525 to ensure correct M8 size, 4-position count, and female socket configuration. Confirm environmental requirements align with the IP65 rating and operating temperature range specified in the official datasheet. Check for any required mating accessories or locking mechanisms compatible with the push-lock design before finalizing procurement.

Selection Notes

Select this component when a robust, unshielded M8 connector with a push-lock mechanism is required for industrial environments. Ensure the application does not demand shielding, as this model is unshielded. Verify that the cable diameter falls within the 3.5 mm to 5.5 mm range for proper strain relief and sealing performance.

Part Context

This part belongs to the SACC-M series of circular connectors from Phoenix Contact, designed for reliable industrial connectivity. The series emphasizes ease of installation through push-lock features and durability via metal housings. This specific model represents a standard solution for general-purpose I/O connections in factory automation settings.

Replacement Considerations

Consult official Phoenix Contact cross-reference lists for verified substitutes. Ensure any replacement maintains identical M8 threading, 4-pin configuration, A coding, and push-lock functionality to guarantee mechanical and electrical compatibility without modification.
