1482526

Overview

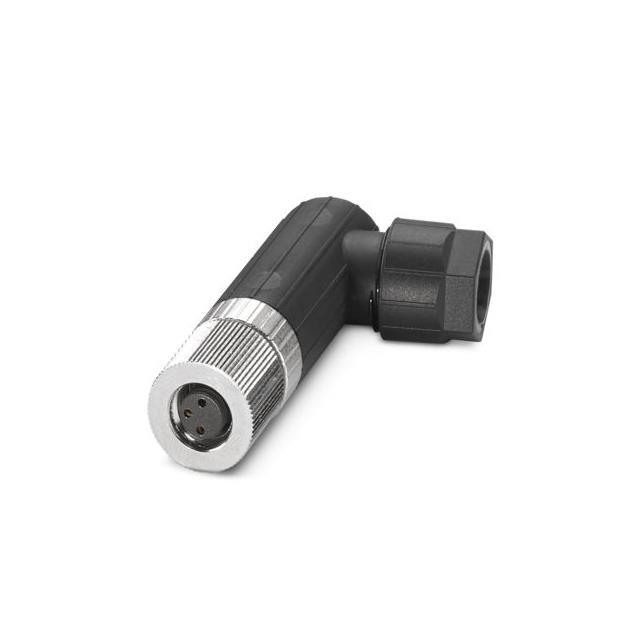

Phoenix Contact part number 1482526 is a universal circular connector assembly from the SACC series. It features a three-position unshielded socket with an angled M8 interface and coding A. The unit utilizes push-lock spring termination for secure wire attachment. Voltage ratings are specified as 48VAC and 60VDC. The cable opening accommodates diameters between 3.50mm and 5.50mm (0.138" to 0.217"). The housing material is zinc die-cast with nickel plating, providing durability for industrial environments.

Feature Summary

• Angled M8 socket design with coding A for precise orientation
• Push-lock spring connection mechanism for rapid termination
• Nickel-plated zinc die-cast knurl for robust handling

Applications

• Industrial sensor wiring connections
• Actuator signal transmission
• Control panel interconnects

Procurement Notes

Verify that the specific application requires an angled M8 socket configuration rather than straight or other coding types. Confirm that the voltage rating of 60VDC aligns with system requirements. Ensure the cable diameter falls within the 3.50mm to 5.50mm range for proper strain relief and sealing integrity during installation.

Selection Notes

Select this component when a compact, angled connection is necessary for space-constrained installations. The spring termination method eliminates the need for specialized crimping tools, facilitating faster assembly compared to screw-type connectors. Consider the IP65/IP67 protection capabilities if the environment demands resistance to dust and water ingress.

Part Context

This connector belongs to Phoenix Contact's SACC series of circular metric connectors. These components are designed for industrial automation and control systems where reliable signal and power transmission is critical. The series offers various positions and coding options to ensure correct mating and prevent misconnection in complex machinery setups.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing mating plugs before considering alternative sources.

FAQ

What is the termination type for this connector?

The connector uses a push-lock spring connection method.

Is this connector shielded?

No, the 1482526 model is unshielded.
