1487835

Overview

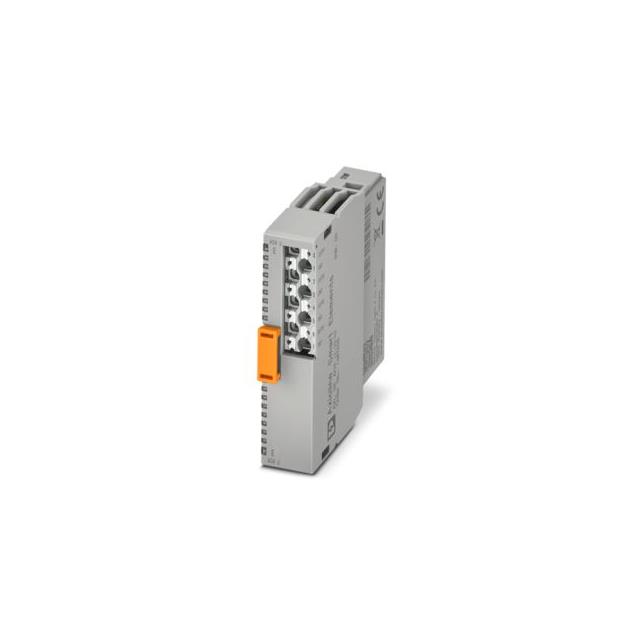

The Phoenix Contact 1487835 is an AXL SE AO4 U -10-10 analog output module within the Smart Elements series. It provides four analog outputs with a voltage range of -10 V to 10 V. The module utilizes 2-conductor connection technology and features a card edge connector for supply voltage. It operates on a DC supply voltage of 19.2 to 30 V and carries an IP20 protection rating.

Feature Summary

• Provides four independent analog output channels
• Supports bidirectional voltage signals from -10 V to 10 V
• Utilizes 2-conductor wiring for signal transmission
• Connects via card edge interface for power and communication

Applications

• Industrial process control systems requiring precise voltage regulation
• Automation setups driving analog actuators or valves
• Smart Element fieldbus infrastructure integration

Procurement Notes

Verify compatibility with existing Axioline F or Smart Elements controllers before purchase. Confirm that the application environment meets the IP20 protection requirements. Ensure the power supply unit delivers stable 19.2–30 VDC. Check for necessary mounting accessories as the module requires additional components for operation.

Selection Notes

Select this model when four isolated analog voltage outputs are required. Choose based on the -10 V to 10 V signal range specification. Consider the 2-wire connection method for wiring simplicity. Verify system compatibility with Phoenix Contact Smart Elements architecture.

Part Context

This component belongs to the Phoenix Contact Axioline Smart Elements family. It functions as a specialized I/O module designed for decentralized automation. The part number 1487835 specifically identifies the analog output variant with defined voltage parameters.

Replacement Considerations

No direct public substitute part numbers are confirmed in available documentation. Verify functional equivalence carefully if considering alternatives from other manufacturers.
