1487836

Overview

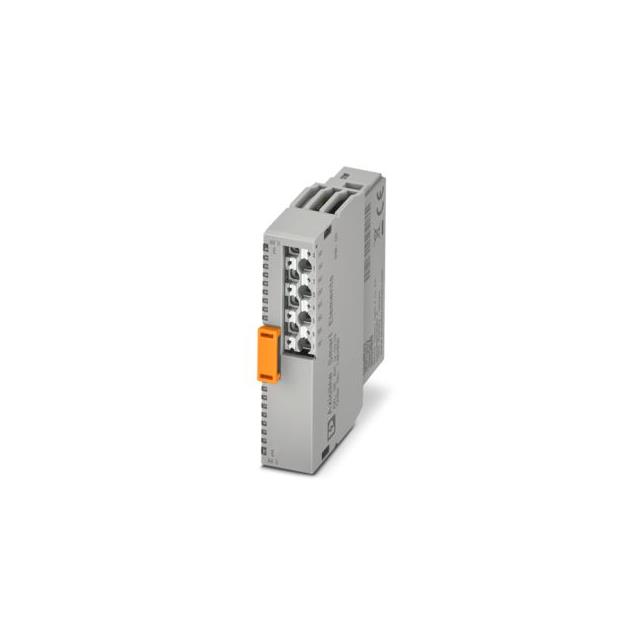

The Phoenix Contact 1487836 is an Axioline Smart Elements analog input module designed for industrial automation. It features four individual analog inputs capable of measuring voltage signals within a range of -10V to 10V. The device operates on a supply voltage of 19.2 to 30VDC and utilizes spring terminal mounting with pluggable screw termination. This compact modular I/O option integrates into systems via the Smart Element interface, providing robust performance for detecting analog voltage signals in harsh environments.

Feature Summary

• Four individual analog inputs for voltage signal detection
• Integration capability via Smart Element interface
• Compact modular design for harsh industrial environments

Applications

• Industrial automation systems requiring analog signal acquisition
• Axioline F I/O system extensions
• Harsh environment monitoring applications

Procurement Notes

Verify the complete part number including any ordering suffixes against official Phoenix Contact documentation to ensure correct configuration. Confirm that the specific variant matches the required voltage range and interface compatibility. Cross-reference technical data sheets for precise electrical specifications and environmental ratings before procurement to avoid integration errors.

Selection Notes

Select this module when four isolated analog voltage inputs are required within an Axioline Smart Elements ecosystem. Ensure the application involves voltage signals between -10V and 10V. Verify that the control system supports the Smart Element interface protocol. Consider the IP20 protection rating and operating temperature limits relative to the installation environment.

Part Context

This component belongs to the Axioline Smart Elements series by Phoenix Contact, which extends the Axioline F I/O system. These modules provide compact, modular I/O solutions designed for high performance and robustness. The series allows for flexible system expansion and integration into various industrial automation architectures through standardized interfaces.

Replacement Considerations

Consult official Phoenix Contact substitution lists for verified compatible replacements. Ensure any substitute maintains identical input channel count, voltage range, and interface compatibility. Generic equivalents may not support the specific Smart Element integration requirements.
