1490379

Overview

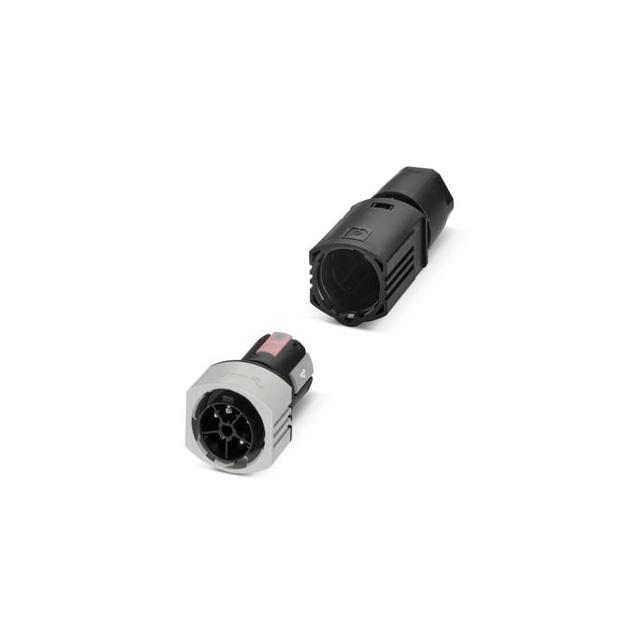

The Phoenix Contact 1490379 is a circular connector assembly from the IPD PL series, designed for panel feed-through applications. It features a push-lock connection mechanism and comprises five positions, specifically configured as four signal pins plus one protective earth (PE) contact. The component supports a rated voltage of 600 V and a current capacity of 17.5 A. Constructed from black polyamide (PA), it accommodates wire cross-sections ranging from 0.5 mm² to 2.5 mm². The connector utilizes coding F and is engineered for reliable power distribution in industrial environments.

Feature Summary

• Push-lock connection method enables simple and time-saving field wiring without tools
• Direct plugging capability facilitates easy energy distribution between components
• Robust construction ensures reliable performance in demanding industrial settings

Applications

• Panel feed-through installations requiring secure electrical connections
• Industrial machinery where direct component plugging is necessary
• Control cabinet wiring systems utilizing push-lock technology

Procurement Notes

Verify that the specific part number 1490379 matches the required pin configuration of 4+FE and the coding F designation. Confirm that the housing material is polyamide and the color is black to ensure compatibility with existing system constraints. Ensure the application environment aligns with the specified voltage and current ratings before procurement.

Selection Notes

Select this model when a panel feed-through circular connector with a push-lock interface is required. It is suitable for applications needing 5 positions with integrated protective earth. Consider the 0.5 mm² to 2.5 mm² wire range and 600 V rating during design. Ensure the coding F matches mating connectors to prevent incorrect insertion.

Part Context

This component belongs to the IPD PL series by Phoenix Contact, which offers various pin configurations ranging from 4 to multiple positions. The series is characterized by its push-lock connection technology, designed for efficient power distribution and simplified wiring processes in industrial automation and control systems.

Replacement Considerations

Check for exact pin count (4+FE) and coding F compatibility. Verify identical voltage (600 V) and current (17.5 A) ratings. Ensure the replacement maintains the push-lock connection type and panel feed-through form factor for mechanical fit.
