1494984

Overview

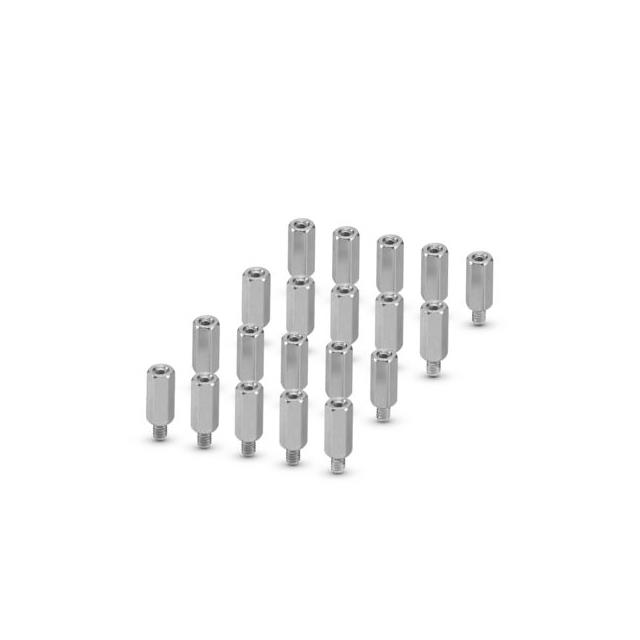

Phoenix Contact part number 1494984 is a UCS SB M2.5x10 spacer bolt designed for mounting Printed Circuit Boards (PCBs) to heatsinks. The component features a steel construction with a galvanized surface finish to ensure durability and corrosion resistance. It has a specified length of 10 mm and requires an AF 5 wrench size for installation. This hardware is classified under interconnect miscellaneous components and is intended for secure mechanical fixation in electronic assemblies.

Feature Summary

• Secures PCBs to heatsinks
• Steel material with galvanized surface
• Requires AF 5 wrench for installation

Applications

• Fixing PCBs to heatsinks
• Electronic assembly mounting
• Thermal management hardware integration

Procurement Notes

Verify the exact part number 1494984 against official Phoenix Contact documentation to confirm specifications. Ensure compatibility with the specific PCB and heatsink configuration. Check for required accessories, as this item may need additional components for proper operation. Confirm lead times and availability through authorized distributors before procurement.

Selection Notes

Select this spacer bolt when a 10 mm standoff height is required between a PCB and a heatsink. The M2.5 thread size must match the mounting holes on both the board and the heat sink. The galvanized steel construction provides necessary structural integrity. Ensure the AF 5 wrench size fits the available tooling in the assembly environment.

Part Context

The 1494984 belongs to the UCS SB series of distance bolts manufactured by Phoenix Contact. These components are standard hardware used in industrial electronics for maintaining precise spacing between circuit boards and thermal dissipation structures. The series offers various lengths and thread sizes to accommodate different mechanical design requirements.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Verify if other UCS SB series variants with identical M2.5 thread and 10 mm length can serve as alternatives, ensuring wrench size and material specifications remain consistent.
