1494989

Overview

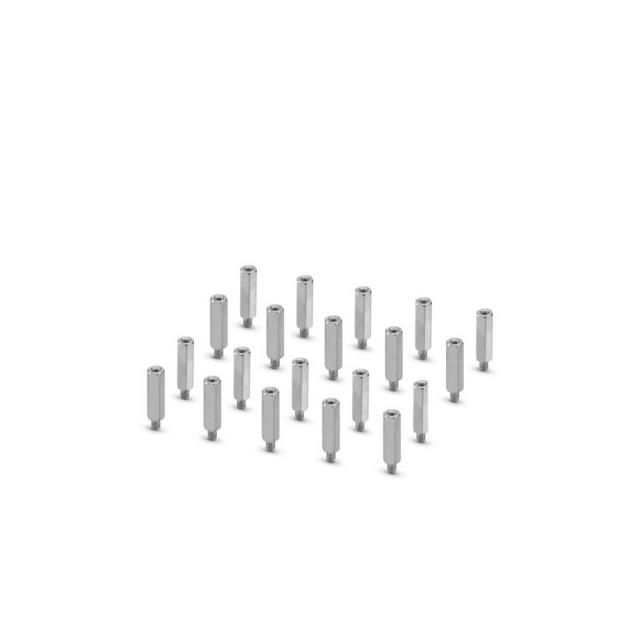

The Phoenix Contact 1494989 is a UCS SB series distance bolt designed for securing printed circuit boards to heatsinks. It features a steel construction with a galvanized surface finish for corrosion resistance. The component has a total length of 15 mm and requires an AF5 wrench size for installation. This spacer bolt ensures stable mechanical mounting in industrial control applications.

Feature Summary

• Steel construction with galvanized surface
• Designed for PCB to heatsink fixation
• Requires AF5 wrench size

Applications

• Securing PCBs to heatsinks
• Industrial control enclosures
• Low-voltage switchgear assembly

Procurement Notes

Verify the part number 1494989 against official Phoenix Contact documentation to confirm specifications. Ensure compatibility with UCS SB series requirements. Check for RoHS compliance status if required by project standards. Confirm packaging details such as PE bag type before ordering.

Selection Notes

Select this component when a 15 mm steel spacer is needed for PCB-to-heatsink mounting. The galvanized finish provides necessary environmental protection. Ensure the assembly allows for AF5 wrench access during installation. Verify that the load requirements are met by the steel material properties.

Part Context

This distance bolt belongs to the UCS SB series from Phoenix Contact, intended for use in low-voltage industrial controls and switchgear. It serves as a critical mechanical interface between electronic components and thermal management structures.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data.
