1499476

Overview

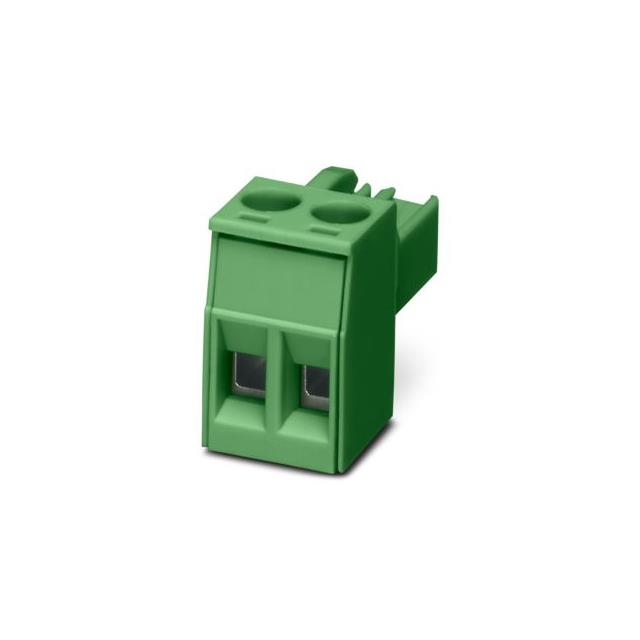

The Phoenix Contact 1499476 is a PCB connector from the MSTBT 2,5 HC series. It features a nominal cross section of 2.5 mm² and a green color. The component supports a nominal current of 16 A, subject to derating curves, and a rated voltage of 320 V under category III/2. The contact surface is tin-plated (Sn). This connector is designed for use with wire-to-board assemblies.

Feature Summary

• Designed for printed circuit board mounting applications
• Supports wire-to-board connector assemblies
• Features tin-plated contact surfaces for conductivity

Applications

• Wire-to-board connector assemblies
• Printed circuit board interconnections
• Industrial control panel wiring

Procurement Notes

Verify the complete part number including suffixes such as GN against official Phoenix Contact documentation to ensure correct specifications. Confirm that the nominal current rating aligns with your system's thermal requirements by consulting the manufacturer's derating curve. Ensure compatibility with mating connectors in your assembly design before procurement.

Selection Notes

Select this component when a 2.5 mm² nominal cross-section PCB connector is required for wire-to-board connections. Consider the 16 A nominal current capacity and 320 V rated voltage limits relative to your specific operating environment. Verify that the green color coding and tin-plated contacts meet your assembly standards and environmental constraints.

Part Context

This component belongs to the MSTBT 2,5 HC series of PCB connectors manufactured by Phoenix Contact. The series is characterized by its 2.5 mm² nominal cross-section capability. The specific model 1499476 denotes the 2-position variant with green housing and tin contacts, intended for reliable electrical connections in industrial electronics.

Replacement Considerations

No public substitute part numbers are confirmed in the provided source material.
