1499528

Overview

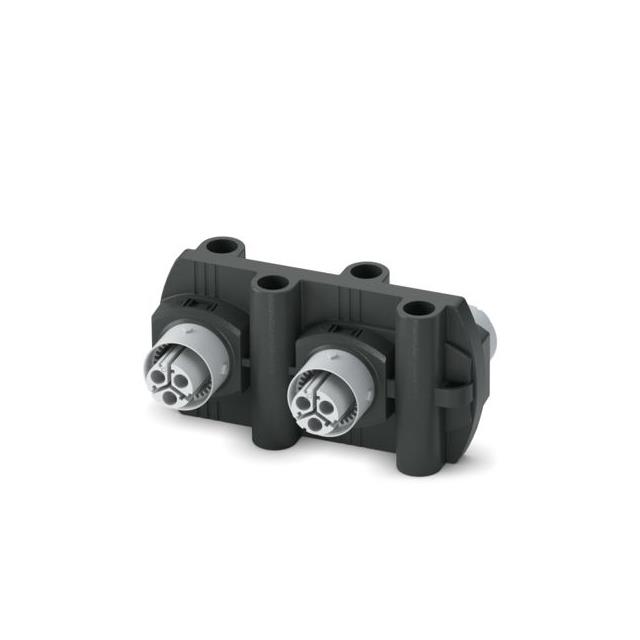

Phoenix Contact part number 1499528 is an H-type power distributor from the IPD series, designed for robust electrical distribution in demanding environments. It features a straight housing with screw mounting and supports conductors up to 2.5 mm². The unit provides 2+PE positions with a rated voltage of 500 VAC/DC and a current rating of 20 A. Key electrical specifications include a rated surge voltage (III/3) of 6 kV. Physical dimensions are 93 mm in width, 48 mm in depth, and 63 mm in height. The component utilizes a push-lock locking mechanism and offers high environmental protection ratings.

Feature Summary

• H-type configuration enables direct plugging of components for easy power distribution
• Push-lock system ensures secure connection without tools
• High environmental protection suitable for harsh conditions

Applications

• Industrial infrastructure systems requiring reliable power tapping
• Outdoor electrical installations exposed to moisture or dust
• Building electrical networks needing tool-free maintenance access

Procurement Notes

Verify that mandatory accessories are included, as installation materials are not standard supply. Confirm the specific coding P designation matches your connector requirements. Ensure the 500 VAC/DC rating aligns with your circuit design. Check for compliance with local safety standards before integration into critical systems.

Selection Notes

Choose this model when a straight H-distributor layout is required for 2+PE circuits. It is suitable for applications needing 20 A capacity and 2.5 mm² conductor support. Consider the 6 kV surge rating for transient protection needs. Verify that the push-lock mechanism fits your assembly constraints compared to pull-pull variants.

Part Context

This component belongs to the Phoenix Contact IPD series, which specializes in power distributors for severe installation conditions. The series includes both H-type and Y-type options with varying contact counts. These distributors utilize a bayonet quick-lock system for reliable operation in tight spaces. The IPD line supports wide distribution in building and industrial power networks.

Replacement Considerations

Part 1499529 is a similar H-distributor but differs in length (72 mm vs 93 mm). Ensure spatial clearance allows for the 93 mm width of 1499528. Verify that the push-lock mechanism is compatible with existing mating connectors, as other series may use push-pull systems.
