1499529

Overview

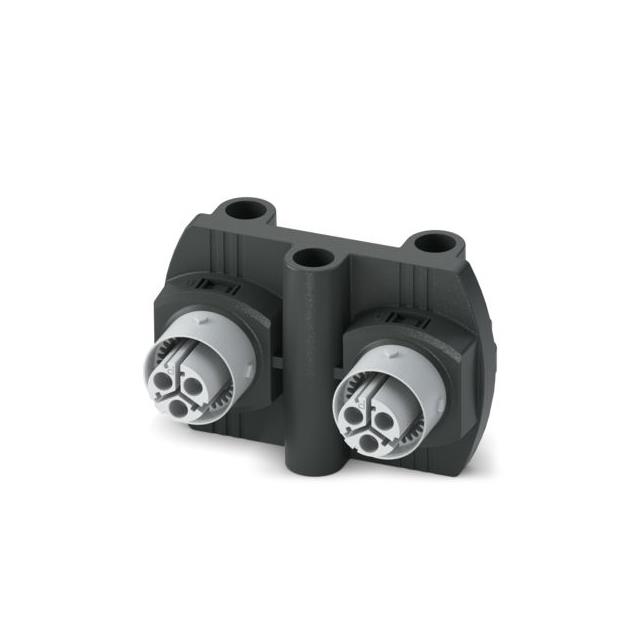

The Phoenix Contact 1499529 is an IPD Y distributor designed for the easy distribution of power components. It features a Y-shaped configuration with 3 positions (2+PE). The unit supports a nominal voltage of 500 VAC and a rated current of 20 A. It utilizes coding P and is colored black. The device provides IP66 protection against dust and water ingress, ensuring reliable operation in demanding industrial environments.

Feature Summary

• Facilitates direct plugging of components for efficient power distribution
• Provides robust environmental protection with IP66 rating
• Features standardized coding P for secure connection alignment

Applications

• Industrial power distribution systems
• Machinery electrical connections
• Control cabinet wiring setups

Procurement Notes

Verify that the specific application requires the IP66 protection level and 20 A current rating. Confirm compatibility with mating connectors using coding P. Ensure the system voltage does not exceed 500 VAC. Check if mandatory accessories are required for full operational functionality as indicated by manufacturer documentation.

Selection Notes

Select this component when a Y-shaped distribution point is needed for 2+PE circuits. Consider the 500 VAC and 20 A limits for load requirements. The IP66 rating makes it suitable for harsh environments. Verify space constraints for the Y-connector geometry and ensure proper strain relief for connected cables.

Part Context

This part belongs to the Phoenix Contact IPD series, which focuses on modular and flexible connector solutions. The IPD Y distributors are designed to simplify cabling by allowing multiple connections from a single entry point. This specific model represents a standard configuration within the broader IPD family for general industrial use.

Replacement Considerations

Check for exact pinout and coding P compatibility before substituting. Verify that alternative parts meet the same IP66 and 500 VAC specifications. Ensure mechanical dimensions allow for identical mounting and cable routing in the existing assembly.
