1499531

Overview

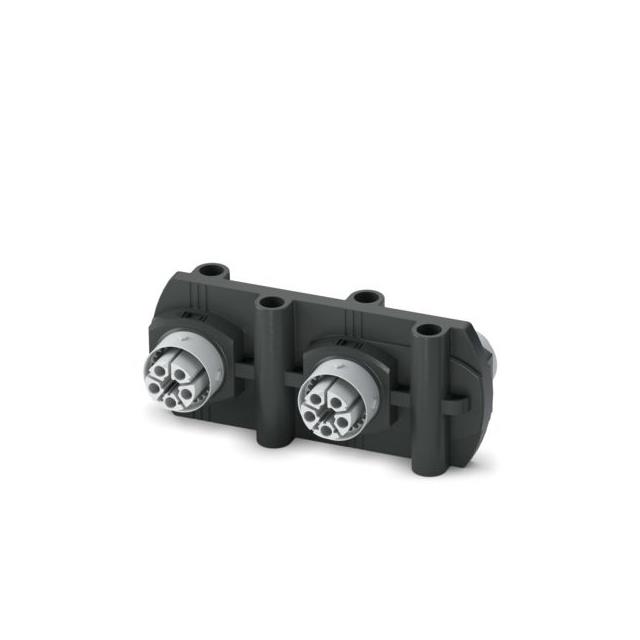

The Phoenix Contact 1499531 is an IPD H series H-distributor featuring five positions with a 4+PE connection profile. It supports a nominal voltage of 600 V and a nominal current of 20 A, with UL Listed approval ID E468743. The component utilizes IDC termination for reliable electrical connections within circular metric connector assemblies.

Feature Summary

• Provides distribution functionality with at least four positions
• Features position marking for identification (1, 2, 3, N, PE)
• Utilizes IDC termination method

Applications

• Industrial control cabinet wiring
• Machine building signal distribution
• Automation system interconnections

Procurement Notes

Verify the specific UL approval specification data against official Phoenix Contact documentation to ensure compliance with regional safety standards. Confirm that the 20 A rating aligns with your circuit requirements, as some sources cite 17.5 A. Ensure the 4+PE configuration matches your system's grounding needs before procurement.

Selection Notes

Select this component when a compact H-distributor with pre-marked positions is required for 600 V systems. The 4+PE profile suits applications needing three phase lines, neutral, and protective earth. Verify compatibility with existing IPD series housing components to ensure proper mechanical fit and electrical continuity in the assembly.

Part Context

This part belongs to the IPD product family, designed for distribution systems handling up to 600 volts. It serves as a modular solution for organizing multiple circuits within industrial environments, offering a standardized interface for circular metric connectors and facilitating efficient cable management in control panels.

Replacement Considerations

Check Phoenix Contact's official cross-reference lists for compatible IPD series distributors. Ensure any substitute maintains the same 5-position count and 4+PE configuration to preserve system integrity and marking consistency.
