1499533

Overview

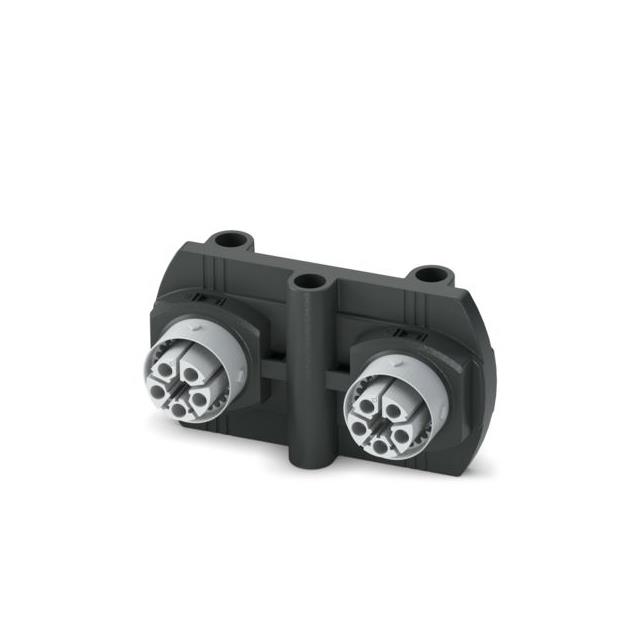

The Phoenix Contact IPD Y 5P2,5 BK (Order No. 1499533) is a circular metric power distributor designed for industrial applications. It features a Y-configuration with P coding and supports 4 contacts plus PE. The unit has a rated voltage of 600 VAC/DC and a current rating of 17.5 A. It includes position markings for 1, 2, 3, N, and PE. The device measures 97 mm in width and carries UL listing E468743.

Feature Summary

• Y-shaped distribution topology for splitting power inputs
• P-coded circular connector interface ensuring correct mating
• Integrated position marking for phases, neutral, and ground
• UL listed certification for safety compliance

Applications

• Industrial power distribution networks
• Circular connector adapter setups
• Machine building electrical systems

Procurement Notes

Verify the specific order number 1499533 against technical requirements before purchase. Confirm that installation materials are not included in the standard supply scope. Ensure compatibility with existing P-coded circular connectors. Check local regulatory approvals such as UL listing E468743 if required by your facility standards.

Selection Notes

Select this component when a Y-distribution function is required within circular connector systems. The P coding dictates mating compatibility, so verify connector types beforehand. Consider the 17.5 A current rating and 600 V voltage limit for load calculations. The physical width of 97 mm must fit within the designated enclosure space.

Part Context

This part belongs to the Phoenix Contact IPD series of power distributors. It serves as a circular connector adapter facilitating power routing in metric connector systems. The product line focuses on robust industrial connectivity solutions with standardized coding schemes.

Replacement Considerations

No public substitute part numbers are confirmed in the provided documentation. Verify exact pinout and coding compatibility before considering alternative manufacturers.

FAQ

What is the coding type for this distributor?

The device uses P coding.

Does the package include installation materials?

Installation materials are not part of the standard supply scope.
