1499534

Overview

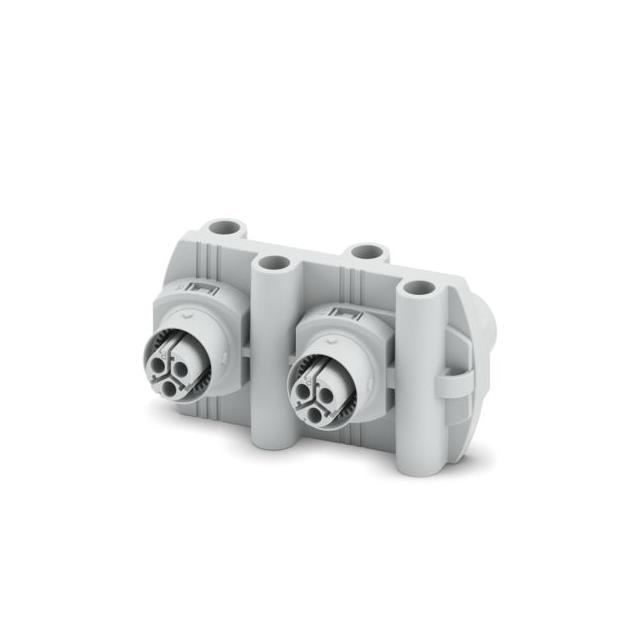

Phoenix Contact part number 1499534 is an H distributor designed for precise and efficient electrical distribution. This component features a panel mount configuration with male connectors. It provides three positions, specifically configured as 2+PE (Line, Neutral, Protective Earth). The unit supports a rated voltage of 500 V and a current capacity of 20 A. The housing is light gray and utilizes coding P to ensure correct mating. The device is manufactured in Germany.

Feature Summary

• Designed for robust performance in electrical distribution applications
• Panel mount installation with male connector interface
• Includes position marking for L, N, and PE terminals

Applications

• Industrial electrical panel wiring
• Machine tool power distribution
• Control cabinet setup

Procurement Notes

Verify the specific IPD H series designation and coding P when sourcing. Confirm the 2+PE pole configuration matches your system requirements. Ensure the 500 V rating and 20 A current capacity are suitable for the intended circuit load. Check for RoHS compliance documentation if required by project specifications.

Selection Notes

Select this model for applications requiring a dedicated H-type distribution point with protective earth integration. The coding P ensures compatibility only with matching Phoenix Contact H-series components. Consider the panel mount form factor for fixed installations rather than DIN rail mounting alternatives.

Part Context

This component belongs to the Phoenix Contact IPD H series of distributors. These units are part of a modular wiring system designed for industrial environments. The series offers various pole configurations and color options to meet diverse electrical distribution needs within control systems.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Verify compatibility with existing H-series coding before considering alternative models from other manufacturers.
