1499537

Overview

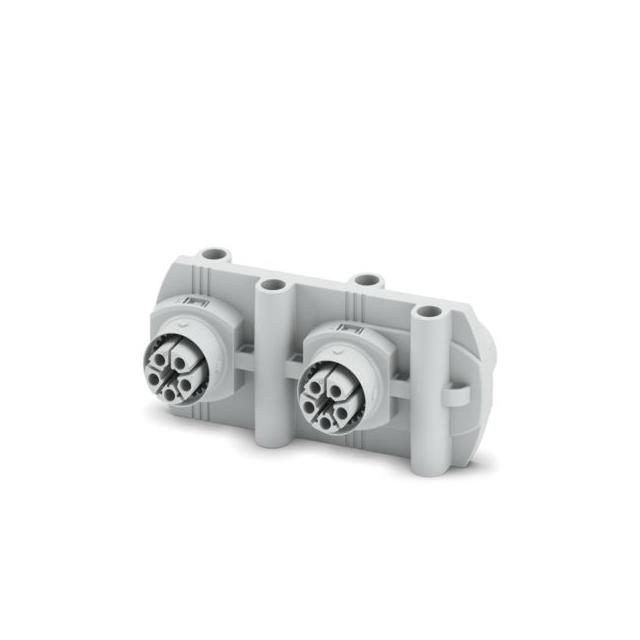

The Phoenix Contact IPD H 5P2,5 GY (1499537) is an H-type power distributor designed for industrial applications. It features a light gray housing with P coding and supports 4+PE positions. The unit is rated for 600 V and 17.5 A. It offers high environmental protection, achieving IP66/IP68/IP69K standards with 50 insertion/withdrawal cycles, or IP66 with 100 cycles. The device has a width of 125 mm and a rated surge voltage of 6 kV (III/3).

Feature Summary

• Provides robust environmental sealing with IP66/IP68/IP69K ratings.
• Engineered for reliable circular connector assembly integration.
• Features standardized P coding for secure mating.

Applications

• Industrial power distribution systems
• Circular connector assemblies
• Harsh environment machinery

Procurement Notes

Verify the specific IP rating requirement against the intended cycle count, as IP66/IP68/IP69K limits cycles to 50 while IP66 allows 100. Confirm that installation materials are not included in the standard supply scope. Ensure the P coding matches the system requirements before procurement.

Selection Notes

Select this model when high ingress protection is required alongside standard circular connector interfaces. The 17.5 A current rating suits moderate power distribution needs. Consider the physical width of 125 mm for panel space planning. Verify compatibility with the specific circular connector series supported by the IPD family.

Part Context

This component belongs to the IPD product family from Phoenix Contact, specifically categorized as a power distributor. It serves as a central point for distributing electrical power within industrial control cabinets or external enclosures, bridging main feeds to individual circular connector outlets.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Phoenix Contact technical support for cross-referencing alternatives if this specific configuration is unavailable.

FAQ

What is the difference in durability between IP66 and IP68/IP69K ratings for this unit?

When configured for IP66, the unit supports 100 insertion/withdrawal cycles. When configured for the higher IP66/IP68/IP69K ratings, the cycle life is reduced to 50.

Does the package include installation materials?

No, installation materials are not part of the standard supply scope for this product.
