14K-502-415-AA1

Headers, Male Pins Overview

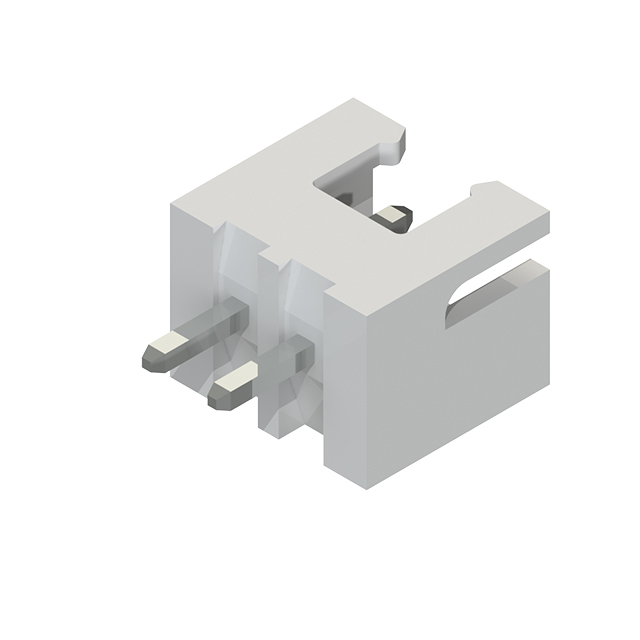

The EDAC Inc. 14K-502-415-AA1 is a straight PCB mount header connector belonging to the 14K series, designed for reliable inline connections. It features a 2.50mm (0.098 inch) contact spacing and accommodates 2 positions in a single row. The component utilizes a socket housing configuration with copper alloy contacts finished in gold plating. Designed for through-hole termination via soldering, it provides a robust connection suitable for wire-to-board applications within a compact form factor.

Headers, Male Pins Feature Summary

• Compact inline design offering robust connectivity for wire-to-wire and wire-to-board applications
• Socket housing configuration with gold-plated copper alloy contacts for reliable signal transmission
• Through-hole solder termination ensures secure mechanical attachment to printed circuit boards

Headers, Male Pins Applications

• Wire-to-board interconnections
• Wire-to-wire harness assembly
• Compact electronic module integration

Headers, Male Pins Procurement Notes

Verify that the specific suffix AA1 corresponds to the required housing variant and mating pin configuration. Confirm that the 2-position count aligns with the target circuit requirements. Ensure the 2.50mm pitch matches the existing board layout and cable specifications before procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, two-position inline connector is required. The 2.50mm spacing offers a balance between density and ease of handling. Verify compatibility with mating pins and ensure the through-hole footprint fits the available PCB area.

Headers, Male Pins Part Context

This part belongs to the EDAC 14K series of inline connectors. The series is characterized by its compact design and suitability for both wire-to-wire and wire-to-board connections. It serves as a standard solution for simple, reliable interconnect needs in space-constrained environments.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other 2-position, 2.50mm pitch headers only if exact electrical and mechanical parameters match.
